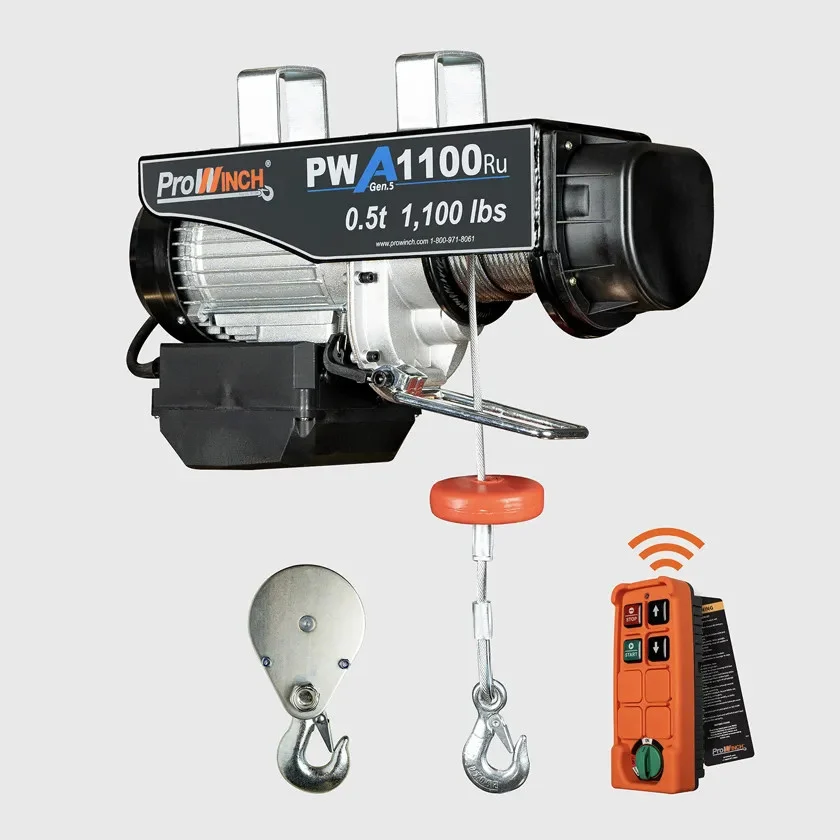

Key Points:
| MRC Rated Capacity | 1100 lb @ 2 lines | 550 lb @ 1 line |
| Voltage | 1 Phase 110~120V 60Hz |
| Number of Speeds | 1 Speed |
| Duty Class | H1/M2/1Cm/Class A |
| Control Included | Wireless F21 Remote Control |
Key Features:
- H1/M2/1Cm/- duty cycle classification describes lifting equipment used infrequently for installing and maintaining heavy equipment, operating up to 7.5 minutes per hour with a maximum of 75 starts, a 12.5% operational time factor (K = 0.65), and a life expectancy of 1,250 hours.
- Heavy Duty Control System Powered By a powerful 1000W Motor with IP40IEC Motor Protection
- Standards Compliance and or Certifications ASME B30.16 , Intertek 4006091 , EN 55014-1:2017, EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 ,
Technical Specifications:
| MRC Rated Capacity | 1100 lb @ 2 lines | 550 lb @ 1 line | Motor Insulation Grade | B |
| Number of Speeds | 1 Speed | Motor Brake | YES |
| Duty Class | H1/M2/1Cm/Class A | Wire Rope Included | ø3/16 in | ø4.3 mm |
| Standard Lifting Height | 38ft @ 1 line / 19ft @ 2 line | FCC Cert ID | OFNF21 |
| Voltage | 1 Phase 110~120V 60Hz | Noise Level | 71 dB |
| Speed (f/m) / min | 33 ft/10m @1line | 16ft/5m @2line | Humidity | <85% |
| Control Voltage | 2 x AA 1,5v | Temperature | -4°~104° F / -20°~40° C |
| Control Included | Wireless F21 Remote Control | IEC Motor Protection | IP40 |
| Motor Model | Squirrel Cage Induction Motor | Standards Compliance | ASME B30.16 |
| Motor Power | 1000W | Warranty | 1 Year |
| Motor AMP | 8.5 AMP | Emergency Stop | YES |
