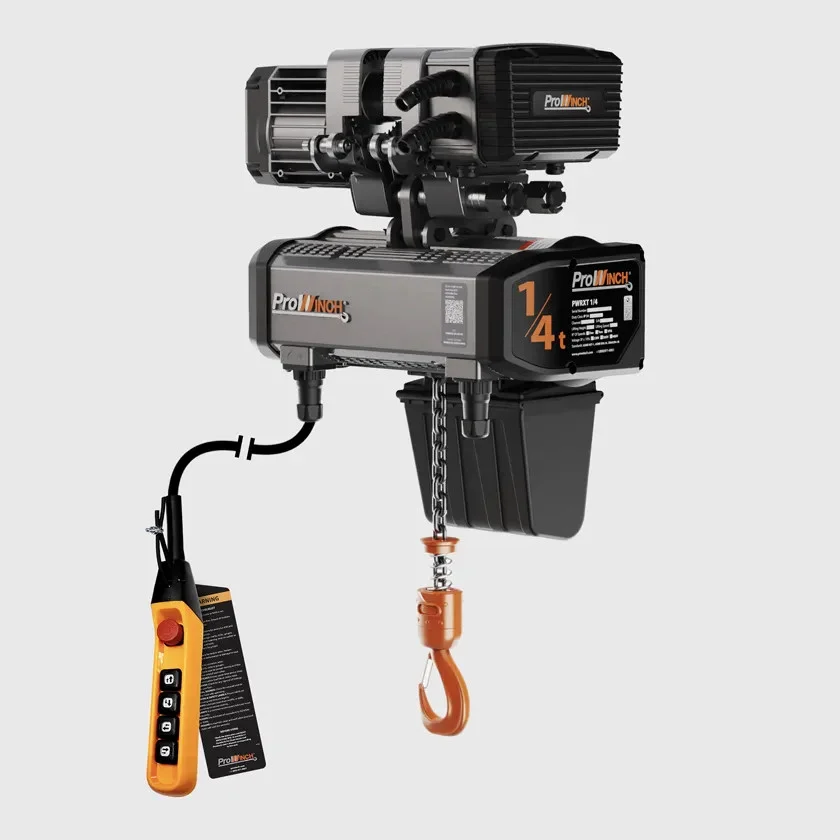

Key Points:
| MRC Rated Capacity | 1/4 ton |
| Voltage | 3 Phase 208~240V 50/60Hz |
| Duty Class | H4/M5/2m/Class D |
| Load Chain Type | G100 Nickel |
| Number of Speeds | 2 Speed |
| Control Included | Pendant Control IP66 |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Heavy Duty Control System Powered by 10A Schneider UL Listed Contactors a powerful 0.5 Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16 , EN60204-36 , ,
Technical Specifications:
| MRC Rated Capacity | 1/4 ton | Total Power Watts | 750 |
| Number of Speeds | 2 Speed | Transmission / Reducer Type | Spur gearbox |
| Duty Class | H4/M5/2m/Class D | Reducer Lubrication Type | Oil |
| Standard Lifting Height | 13 ft / 4 m | Trolley Speed /min | 14.17~43.30 ft @60Hz 3.6~11 mt @50Hz |
| Voltage | 3 Phase 208~240V 50/60Hz | Trolley Number of Speeds | 2 |
| Speed (f/m) / min | 1 st speed : (11.81 ft @60Hz – 3 mt @50Hz) / 2 nd speed : (37.79 ft @60Hz – 9.6 mt @50Hz) | Trolley Power | 250 |
| Pendant Control Included | Yes | I-Beam Width Range | 3″ to 5″ |
| Pendant Control Emergency Stop | Yes | Minimum Turn Radius | 1.3 |
| IEC Pendant Control IP Protection | IP66 | Trolley Motor Brake Type and DC Voltage | DC99V |
| Control Voltage | 48V | Trolley Motor Insulation Grade | F |
| Control Included | Pendant Control IP66 | Trolley Contactors Amps | 20A |
| Contactor Brand | Schneider | Trolley Contactors Brand | Schneider |
| Contactors Amps | 10A | Trolley UL Component | UL Listed |
| Hour Meter | Internal Working Hour Meter | Trolley Contactors Coil Voltage | 48V |
| Power Cord Length and Phase Order | 3 ft / Black L1 , Red L2 and Blue L3?Green ground | Trolley Wheel Diameter | 95 |
| Brake rectifiers-half-wave | PWRX-BKTF-HW | Trolley Wheel Material | No. 45 steel |
| Brake rectifiers-full-wave | PWRX-BKTF-FW | Trolley Minimum Turn Radius | 1.3 |
| Load Chain Type | G100 Nickel | Trolley Beam Range | 3″ to 5″ |
| Load Chain Size | 5mm | Trolley Beam Extension Kit | up to 12″ |
| Load Chain weight per foot [lbs] | 0.36 | Paint Specifications | Electrostatic Sprayed Plastic (ESP) Epoxy resins, Polyester Resins, Barium, Pigments |
| Rig Chain Falls / Lines | 1 | Humidity | 20%~90% |
| Chain Length (ft) | 13 | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Hoist Contactor Coil Voltage | 48V | IEC Motor Protection | IP55 |
| IEC Hoist IP Protection | IP55 | Standards Compliance | ASME HST-1 , ASME B30.16 , EN60204-36 |
| Hoist Motor Power in KW | 0.5 | UL Components | UL Listed Contactors |
| Hoist Motor Brake Type and DC Voltage | DC99V | Warranty | 3 Year |
| Hoist Motor Insulation Grade | F | 1st Package Type | Wood Crate |
| Recommended Hoist Protection Circuit Breaker AMPs and Type | Type D 15A at 220V and 10A at 460V | 2nd Package Type | Wood Crate |
| Overload Protection | Overload Motor Clutch | Emergency Stop | Yes |
| Optional Load Chain Brand & Country of Origin | FEC Japan |
