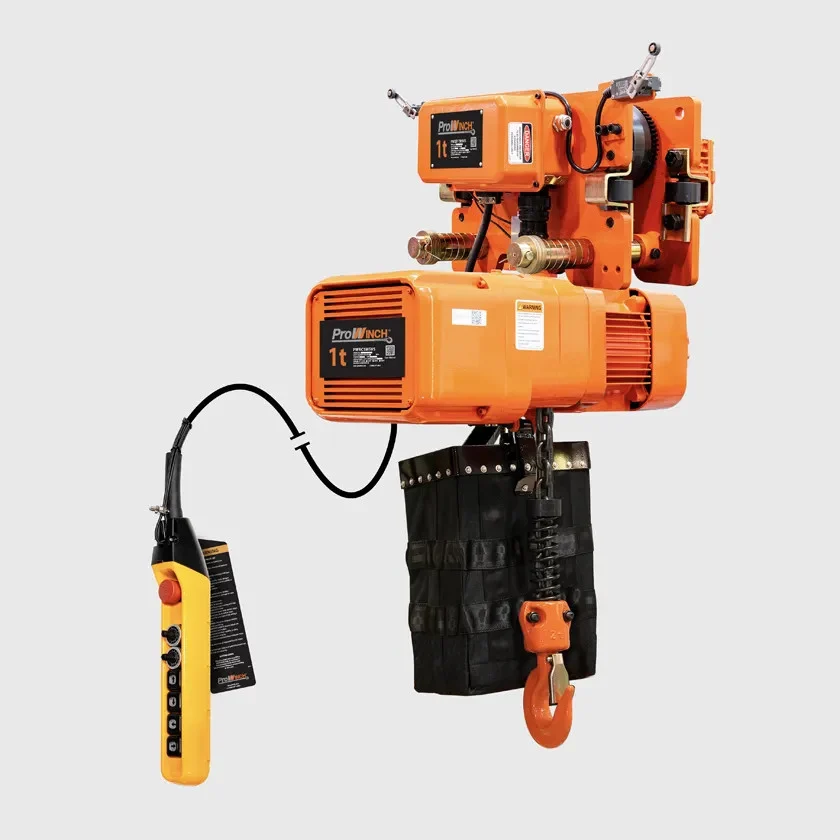

Key Points:
| MRC Rated Capacity | 2200 lb / 1000 kg |
| Voltage | 3 Phase 380~480V 50/60Hz |
| Duty Class | H4/M5/2m/Class D |
| Load Chain Type | FEC G80 Japan |
| Number of Speeds | Variable Speed |
| Control Included | Pendant Control and Optional Wireless |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Heavy Duty Control System Powered by a powerful Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16 , B30.17, EN60204-32 , ,
Technical Specifications:
| MRC Rated Capacity | 2200 lb / 1000 kg | Transmission / Reducer Type | Spur gearbox with Oil splash lubrication |
| Number of Speeds | Variable Speed | Noise Level | 81 dB |
| Duty Class | H4/M5/2m/Class D | Trolley Number of Speeds | Variable |
| Standard Lifting Height | 20 ft / 6 m | Trolley Power | 0.4 kW |
| Voltage | 3 Phase 380~480V 50/60Hz | Trolley VFD | 2.2KW VFD, Delta model: VFD5A5MS43ANSAA |
| Control Voltage | 24V | IEC Motor Protection | IP55 |
| Control Included | Pendant Control and Optional Wireless | Standards Compliance | ASME HST-1 , ASME B30.16 , B30.17, EN60204-32 |
| Motor Insulation Grade | F | Warranty | 3 Year |
| Motor Brake | Yes DC Electromagnetic | Emergency Stop | Yes |
| Load Chain Type | FEC G80 Japan | Variable Fequency Driver | 2.2KW VFD, Delta model: VFD5A5MS43ANSAA |
