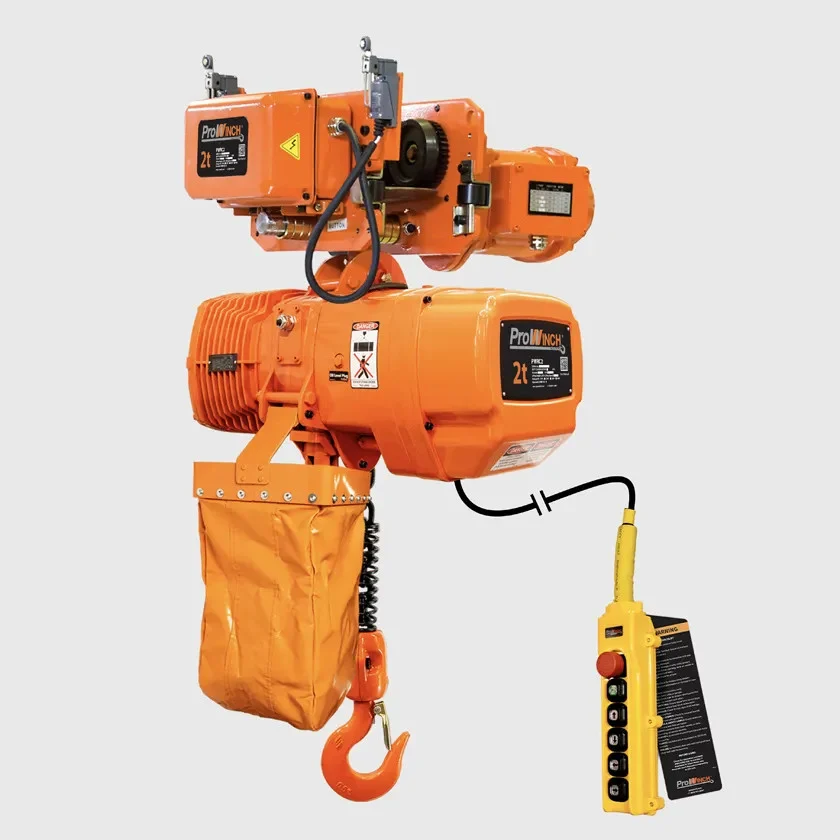

Key Points:
| MRC Rated Capacity | 4400 lb / 2000 kg |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz |
| Duty Class | H3/M4/1Am/Class C |
| Load Chain Type | G100 |
| Number of Speeds | 1 Speed |
| Control Included | Pendant Control and Optional Wireless |
Key Features:
- H3/M4/1Am/Class B duty cycle classification applies to lifting equipment used in general manufacturing, assembly, and storage, operating up to 15 minutes per hour with a maximum of 150 starts, a 25% operational time factor (K = 0.65), and a life expectancy of 5,000 hours.
- Heavy Duty Control System Powered by EATON 25 AMP a powerful 3 kW Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16 , B30.17, EN60204-32 , ,
Technical Specifications:
| MRC Rated Capacity | 4400 lb / 2000 kg | Chain Length (ft) | 20 ft / 6 m |
| Number of Speeds | 1 Speed | Transmission / Reducer Type | Spur gearbox with Oil splash lubrication |
| Duty Class | H3/M4/1Am/Class C | Noise Level | 81 dB |
| Standard Lifting Height | 20 ft / 6 m | Trolley Speed /min | 36 ft / 11 m |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz | Trolley Number of Speeds | 1 |
| Speed (f/m) / min | 26ft/7.9m@60Hz 22ft/6.6m@50Hz |
Trolley Power | 0.4 kW |
| Control Voltage | 24V | I-Beam Width Range | 82-178 mm |
| Control Included | Pendant Control and Optional Wireless | Minimum Turn Radius | 2.9 ft / 0.9 m |
| Contactor Brand | EATON 25 AMP | Humidity | <85% |
| Motor Power | 3 kW | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Motor AMP | 10 / 5 | IEC Motor Protection | IP55 |
| Motor RPM | 1728@60Hz 1440@50HZ | Standards Compliance | ASME HST-1 , ASME B30.16 , B30.17, EN60204-32 |
| Motor Insulation Grade | F | Warranty | 3 Year |
| Motor Brake | Yes | T Trolley Motor Width | 9.09 in / 231 mm |
| Load Chain Type | G100 | R Trolley Cover Width | 5.5 in / 142 mm |
| Load Chain Size | 10 x 30 mm | Emergency Stop | Yes |
| Rig Chain Falls / Lines | 1 |
