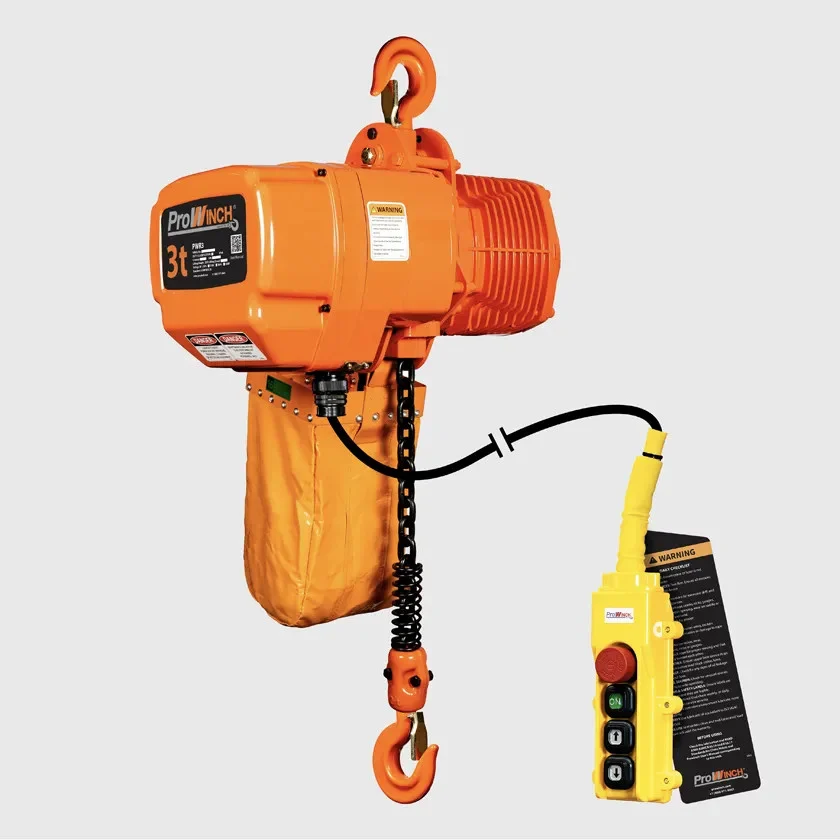

Key Points:
| MRC Rated Capacity | 6600 lb / 3000 kg |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz |
| Duty Class | H3/M4/1Am/Class C |
| Load Chain Type | G100 |
| Number of Speeds | 1 Speed |
| Control Included | Pendant Control and Optional Wireless |
Key Features:
- H3/M4/1Am/Class B duty cycle classification applies to lifting equipment used in general manufacturing, assembly, and storage, operating up to 15 minutes per hour with a maximum of 150 starts, a 25% operational time factor (K = 0.65), and a life expectancy of 5,000 hours.
- Heavy Duty Control System Powered by EATON 25 AMP a powerful 3 kW Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16, EN60204-32 , ,
Technical Specifications:
| MRC Rated Capacity | 6600 lb / 3000 kg | Motor RPM | 1728@60Hz 1440@50HZ |
| Number of Speeds | 1 Speed | Motor Insulation Grade | F |
| Duty Class | H3/M4/1Am/Class C | Motor Brake | Yes |
| Standard Lifting Height | 30 ft / 9 m | Load Chain Type | G100 |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz | Load Chain Size | 11.2×34 mm |
| Speed (f/m) / min | 21ft/6.4m@60Hz 17.5ft/5.4m@50Hz |
Rig Chain Falls / Lines | 1 |
| Pendant Control Included | Included | Chain Length (ft) | 30 ft / 9 m |
| Pendant Control Emergency Stop | Yes | Transmission / Reducer Type | Spur gearbox with Oil splash lubrication |
| IEC Pendant Control IP Protection | IP66 | Noise Level | 81 dB |
| Control Voltage | 24V | Humidity | <85% |
| Control Included | Pendant Control and Optional Wireless | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Contactor Brand | EATON 25 AMP | IEC Motor Protection | IP55 |
| Motor Model | TEFC | Standards Compliance | ASME HST-1 , ASME B30.16, EN60204-32 |
| Motor Power | 3 kW | Warranty | 3 Year |
| Motor AMP | 10 / 5 | Emergency Stop | Yes |
