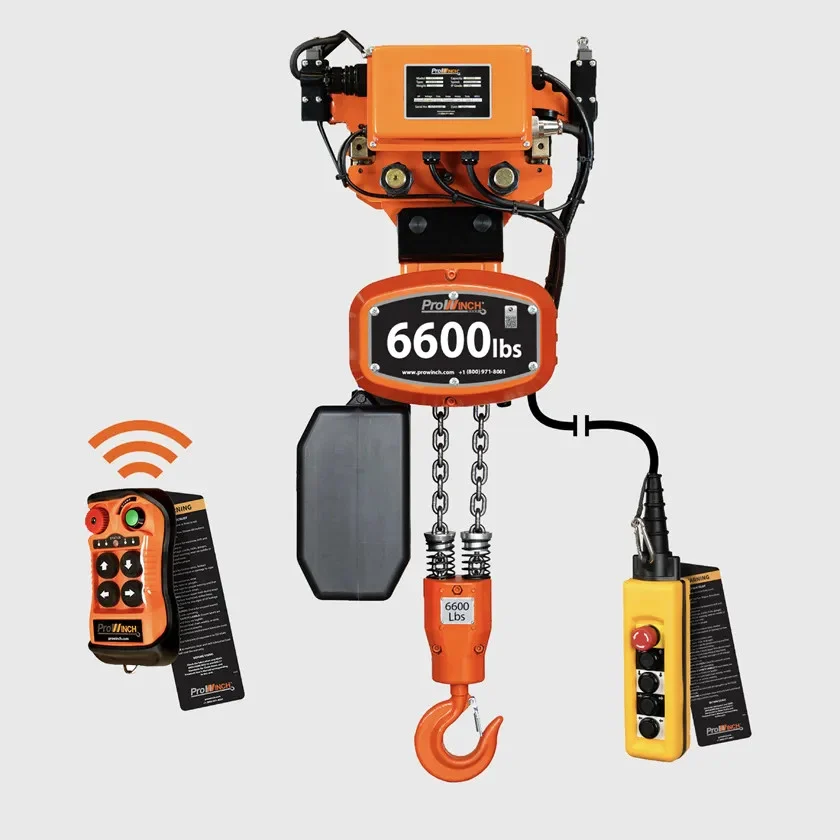

Key Points:
| MRC Rated Capacity | 6600 lbs / 3000 kg |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz |
| Duty Class | H4/M5/2m/Class D |
| Load Chain Type | G80 JAPAN |
| Number of Speeds | 1 Speed |
| Control Included | Wireless PW-Q400 and Pendant Control |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Heavy Duty Control System Powered by a powerful 3 kW Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications UL 1340, ASME HST-1 , ASME B30.16 , B30.17, EN60204-32 , , MSXT.E528915 – Hoists
Technical Specifications:
| MRC Rated Capacity | 6600 lbs / 3000 kg | Chain Length (ft) | 30 ft / 9 m |
| Number of Speeds | 1 Speed | FCC Cert ID | 2AZMK-Q1212 |
| Duty Class | H4/M5/2m/Class D | Noise Level | 81 dB |
| Standard Lifting Height | 30 ft / 9 m | I-Beam Width Range | 5 – 7 inches |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz | Humidity | <85% |
| Control Voltage | 24V | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Control Included | Wireless PW-Q400 and Pendant Control | IEC Motor Protection | IP55 |
| Motor Power | 3 kW | Standards Compliance | UL 1340, ASME HST-1 , ASME B30.16 , B30.17, EN60204-32 |
| Motor Insulation Grade | F | UL File | MSXT.E528915 – Hoists |
| Motor Brake | Yes | Warranty | 3 Year |
| Load Chain Type | G80 JAPAN | T Trolley Motor Width | 6.9 in /16.5 cm |
| Load Chain Size | 11.2 x 34 mm | Emergency Stop | Yes |
| Rig Chain Falls / Lines | 1 |
