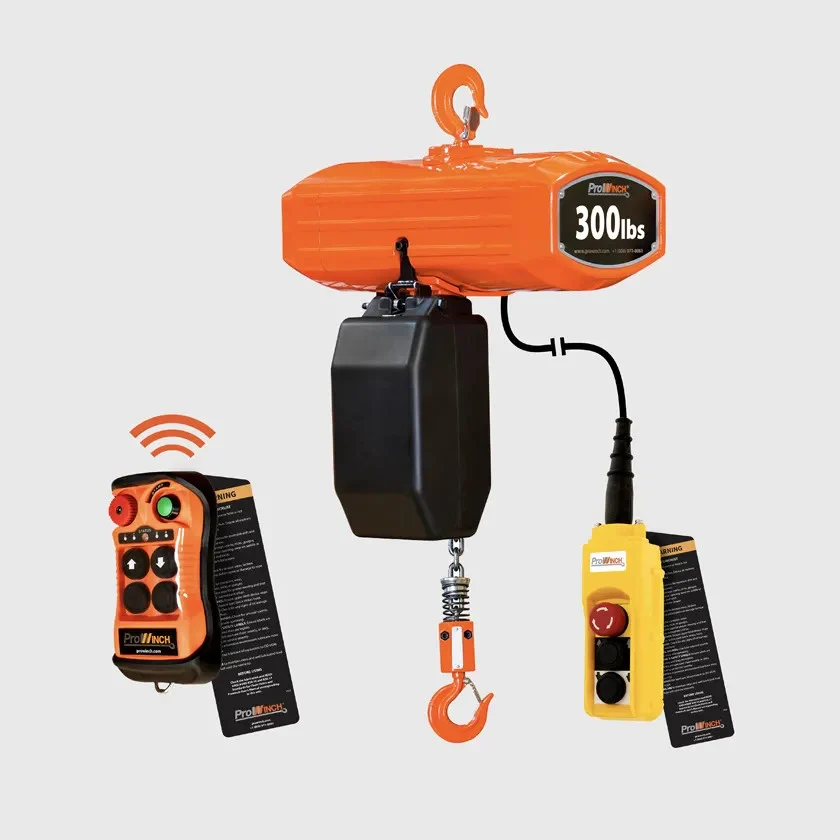

Key Points:
| MRC Rated Capacity | 300 lb |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz |
| Duty Class | H3/M4/1Am/Class C |
| Load Chain Type | G100 |
| Number of Speeds | 1 Speed |
| Control Included | Wireless and Pendant Control |
Key Features:
- H3/M4/1Am/Class B duty cycle classification applies to lifting equipment used in general manufacturing, assembly, and storage, operating up to 15 minutes per hour with a maximum of 150 starts, a 25% operational time factor (K = 0.65), and a life expectancy of 5,000 hours.
- Heavy Duty Control System Powered by a powerful 0.4 kW Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications UL 1340 – ASME HST-1 , ASME B30.16 , EN60204-32 , , MSXT.E528915 – Hoists
Technical Specifications:
| MRC Rated Capacity | 300 lb | Motor Brake | Yes DC Electromagnetic |
| Number of Speeds | 1 Speed | Load Chain Type | G100 |
| Duty Class | H3/M4/1Am/Class C | Load Chain Size | 5×15 mm |
| Standard Lifting Height | 20 ft / 6 m | Rig Chain Falls / Lines | 1 |
| Voltage | 3 Phase 208~240/440~480V 50/60Hz | Chain Length (ft) | 20 ft / 6 m |
| Speed (f/m) / min | 26 ft / 8 m | FCC Cert ID | 2AZMK-Q1212 |
| Pendant Control Included | Included | Noise Level | 81 dB |
| Pendant Control Emergency Stop | Yes | Humidity | <85% |
| IEC Pendant Control IP Protection | IP66 | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Control Voltage | 24V | IEC Motor Protection | IP55 |
| Control Included | Wireless and Pendant Control | Standards Compliance | UL 1340 – ASME HST-1 , ASME B30.16 , EN60204-32 |
| Motor Model | TEFC | UL File | MSXT.E528915 – Hoists |
| Motor Power | 0.4 kW | Warranty | 3 Year |
| Motor Insulation Grade | F | Emergency Stop | Yes |
