Key Points:
| MRC Rated Capacity | 200Kg @ 2 lines | 100Kg @ 1 line |
| Voltage | 1 Phase 220~240V 50/60Hz |
| Number of Speeds | 1 Speed |
| Duty Class | H1/M2/1Cm/Class A |

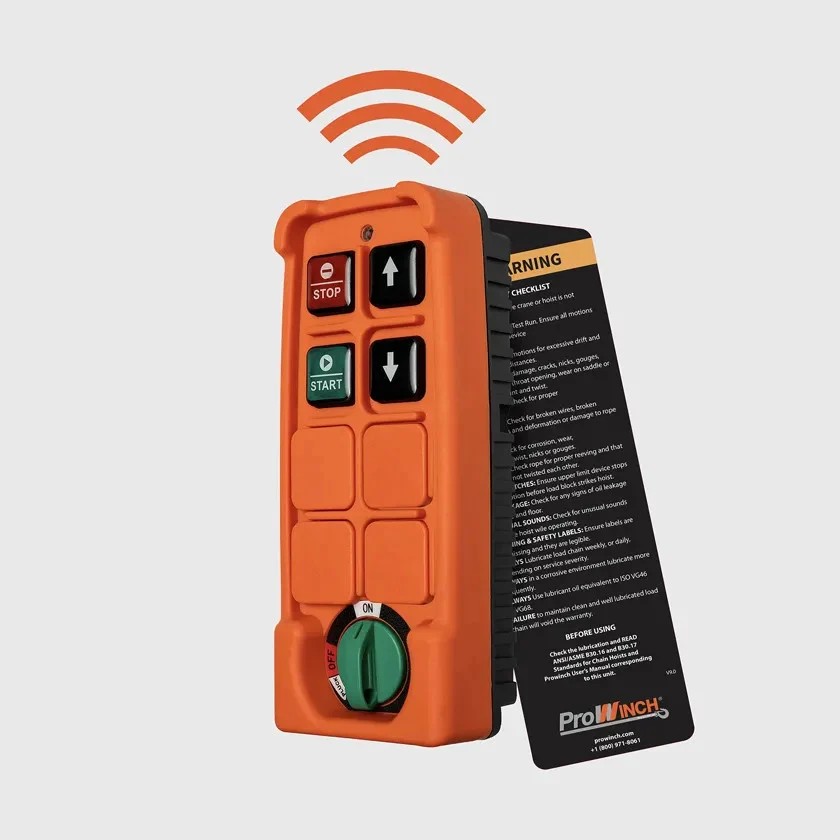

| Control Included | Wireless F21 Remote Control |
Key Features:
- H1/M2/1Cm/- duty cycle classification describes lifting equipment used infrequently for installing and maintaining heavy equipment, operating up to 7.5 minutes per hour with a maximum of 75 starts, a 12.5% operational time factor (K = 0.65), and a life expectancy of 1,250 hours.
- Heavy Duty Control System Powered By a powerful 450W Motor with IP54IEC Motor Protection
- Standards Compliance and or Certifications ASME B30.16 , Intertek 4006091 , CAN/CSA C22.2 , EN14492-2 , EN60204-32 ,
Technical Specifications:
| MRC Rated Capacity | 200Kg @ 2 lines | 100Kg @ 1 line | Motor Brake | YES |
| Number of Speeds | 1 Speed | Wire Rope Included | ø1/8 in / ø3.0 mm |
| Duty Class | H1/M2/1Cm/Class A | FCC Cert ID | CTB210313002EX |
| Standard Lifting Height | 40ft single line / 20ft double line (12m / 6m) | Noise Level | 71 dB |
| Voltage | 1 Phase 220~240V 50/60Hz | Humidity | <85% |
| Speed (f/m) / min | 33 ft/10m @1line | 16ft/5m @2line | Temperature | -4°~104° F / -20°~40° C |
| Control Voltage | 2 x AA 1,5v | IEC Motor Protection | IP54 |
| Control Included | Wireless F21 Remote Control | Standards Compliance | ASME B30.16 |
| Motor Model | Squirrel Cage Induction Motor | Warranty | 1 Year |
| Motor Power | 450W | Emergency Stop | YES |
| Motor Insulation Grade | B |
