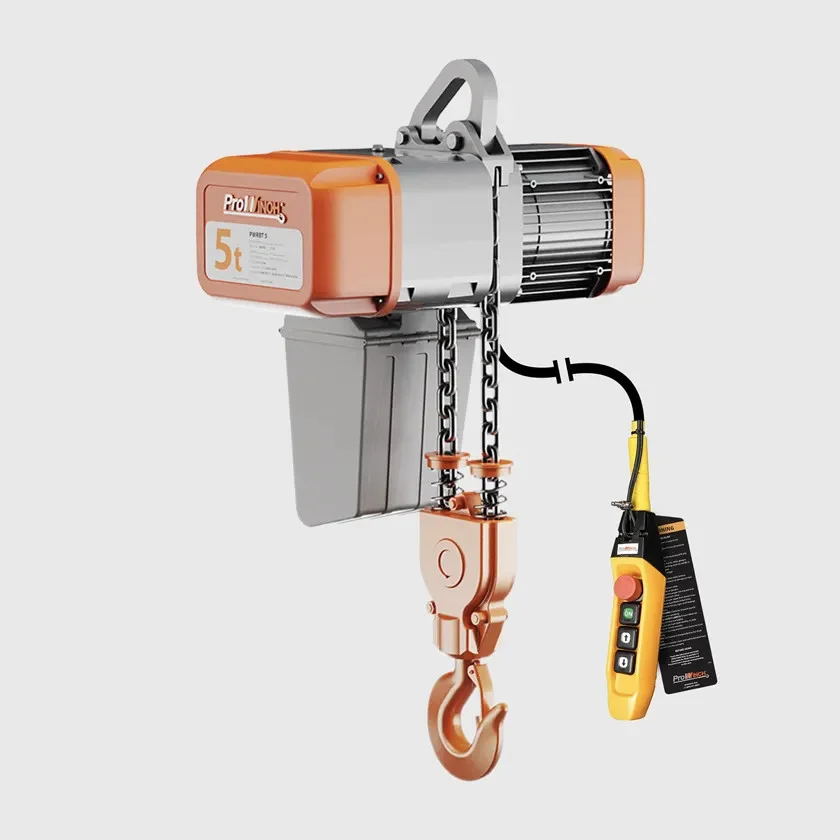

Key Points:
| MRC Rated Capacity | 5 ton |
| Voltage | 3 Phase 208~240V 50/60Hz |
| Duty Class | H4/M5/2m/Class D |
| Load Chain Type | G100 Nikel |
| Number of Speeds | 1 Speed |
| Control Included | Pendant Control IP66 |
Key Features:
- H4/M5-M6/2m-3m/Class C-Class D duty cycle classification applies to lifting equipment used in high-volume heavy load handling, such as steel handling and manufacturing operations, or in lighter-load automatic cycles like heat treatment, operating up to 30 minutes per hour with a maximum of 300 starts, a 50% operational time factor (K = 0.65), and a life expectancy of 10,000 hours.
- Heavy Duty Control System Powered by 25A sokar a powerful 3 Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications ASME HST-1 , ASME B30.16 , EN60204-36 , ,
Technical Specifications:
| MRC Rated Capacity | 5 ton | Hoist Contactor Coil Voltage | 24 V |
| Number of Speeds | 1 Speed | IEC Hoist IP Protection | IP55 |
| Duty Class | H4/M5/2m/Class D | Hoist Motor Power in KW | 3 |
| Standard Lifting Height | 16 ft / 5 m | Hoist Motor Insulation Grade | F |
| Voltage | 3 Phase 208~240V 50/60Hz | Recommended Hoist Protection Circuit Breaker AMPs and Type | Type D 15A |
| Speed (f/m) / min | 10,63 ft @60Hz 2,7 mt @50Hz |
Optional Load Chain Brand & Country of Origin | FEC Japan or RUD Germany |
| Pendant Control Included | Included | Total Power Watts | 3000 |
| Pendant Control Emergency Stop | Yes | Transmission / Reducer Type | Spur gearbox |
| IEC Pendant Control IP Protection | IP66 | Reducer Lubrication Type | Oil |
| Control Voltage | 24V | Noise Level | 81 dB |
| Control Included | Pendant Control IP66 | Paint Specifications | Electrostatic Sprayed Plastic (ESP) Epoxy resins, Polyester Resins, Barium, Pigments |
| Contactor Brand | sokar | Humidity | 20%~90% |
| Contactors Amps | 25A | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Power Cord Length and Phase Order | 3 ft / Black L1 , Red L2 and Blue L3?Green ground | IEC Motor Protection | IP55 |
| Load Chain Type | G100 Nikel | Standards Compliance | ASME HST-1 , ASME B30.16 , EN60204-36 |
| Load Chain Size | 11.2 mm | Warranty | 3 Year |
| Load Chain weight per foot [lbs] | 1.82 | 1st Package Type | Wood Crate |
| Rig Chain Falls / Lines | 2 | Emergency Stop | Yes |
| Chain Length (ft) | 32 |
