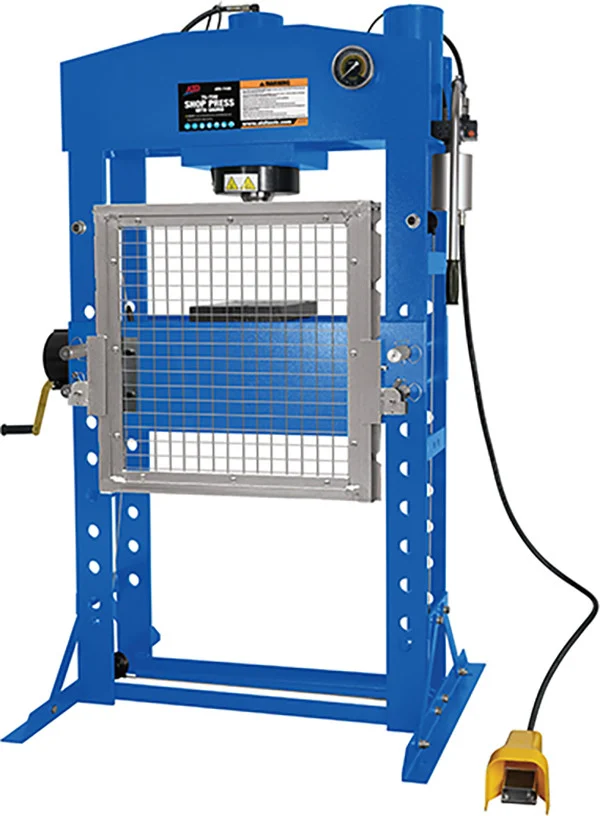

Features:
- Fully welded frame for maximum strength and durability
- Double-speed pump for improved efficiency
- Foot control air valve allows effortless, hands-free operation of air motor
- Cylinder can be moved left or right to apply pressure exactly where it’s needed
- Self-locking hand winch for easier raising and lowering of the press bed
- 8 Position bed allows work height adjustment of 4″ each
- Large oil-filled anti-shock pressure gauge with stainless steel frame scale for US and metric tons
- Patented safety valve for longer service life
- Includes a set of non-slip steel blocks for safer operation
- Includes protective work guard for added safety
- Meets or exceeds ASME/PASE 2019 standards
Specifications:
- Capacity: 75 Tons
- Hydraulic stroke: 9.88″
- Working Range: 6.63″ to 34.75″
- Horizontal Ram Travel: 10.25″
- Bed width: 31.5″
- Bed depth: 10.9″
- Bed inner dimensions (effective area): 9.9″
- Bed Positions: 8
- Press Size: 51.2″ W x 31.5″ D x 74.63″ H
- Air Pressure: 110 to 120 ps
