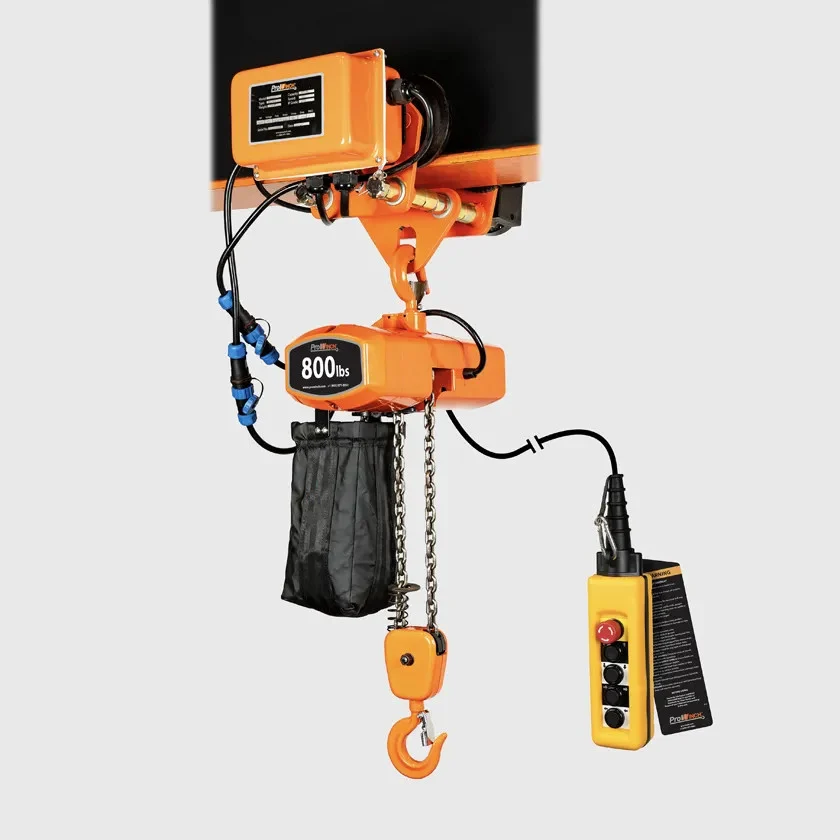

Key Points:
| MRC Rated Capacity | 800 lbs / 360 kg |
| Voltage | 1 Phase 110~120V 60Hz |
| Duty Class | H3/M4/1Am/Class C |
| Load Chain Type | G100 |
| Number of Speeds | 1 Speed |
| Control Included | Pendant Control |
Key Features:
- H3/M4/1Am/Class B duty cycle classification applies to lifting equipment used in general manufacturing, assembly, and storage, operating up to 15 minutes per hour with a maximum of 150 starts, a 25% operational time factor (K = 0.65), and a life expectancy of 5,000 hours.
- Heavy Duty Control System Powered by a powerful 0.2 kw Motor with IP55IEC Motor Protection
- Standards Compliance and or Certifications UL 1340 – ASME HST-1 , ASME B30.16, EN60204-32 , , MSXT.E528915 – Hoists
Technical Specifications:
| MRC Rated Capacity | 800 lbs / 360 kg | Chain Length (ft) | 20 ft / 6 m |
| Number of Speeds | 1 Speed | Total Power Watts | 150 |
| Duty Class | H3/M4/1Am/Class C | Noise Level | 81 dBf |
| Standard Lifting Height | 15 ft / 4.5 m | Trolley Number of Speeds | 1 |
| Voltage | 1 Phase 110~120V 60Hz | I-Beam Width Range | 3 – 7in |
| Speed (f/m) / min | 7 ft / 2.1 m | Humidity | <85% |
| Control Voltage | 24V | Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Control Included | Pendant Control | IEC Motor Protection | IP55 |
| Motor Power | 0.2 kw | Standards Compliance | UL 1340 – ASME HST-1 , ASME B30.16, EN60204-32 |
| Motor Insulation Grade | F | UL File | MSXT.E528915 – Hoists |
| Motor Brake | Yes | Warranty | 3 Year |
| Load Chain Type | G100 | Emergency Stop | Yes |
| Rig Chain Falls / Lines | 2 |
