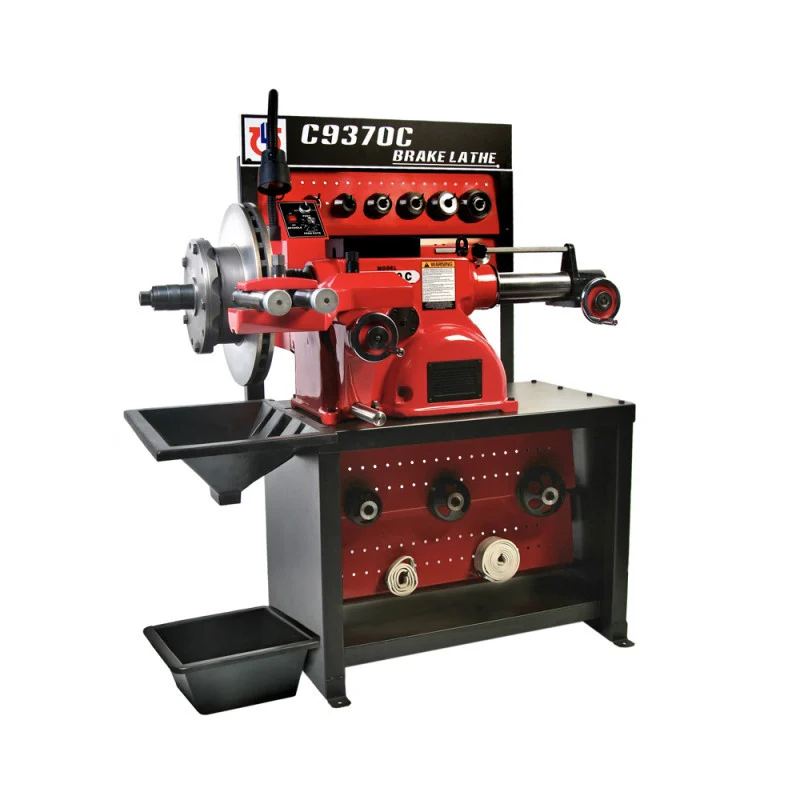

| ITEM | C9370C |
| Spindle travel | 9.875″ (251mm) |
| Rotor diameter | 7″-18″ (180-457mm) |
| Drum diameter | 6″-28″ (152-711mm) |
| Motor | 220±10%, 50Hz±2Hz |
| Spindle speed | 70,80,118 rpm |
| Rotor thickness | 4″ (102mm) |
1. DC motors designed to meet the demanding requirement of industrial motion control.
2. “Change Adapter” system to eliminate the need for conventional bell clamps and cones.
3. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.
4. Infinitely variable spindle and cross feed speed settings for quick rough and precision finish cuts.
5. Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast.
Lead time: 45-60 days upon shipment of order by manufacturer.
| Spindle Travel | 9.875” (251mm) |
| Spindle Speed | 70,88,118 RPM |
| Spindle Feed Speed | 0.002”(0.05mm)-0.02”(0.5mm) Rev |
| Cross Feed Speed | 0.002”/0.05mm-0.01”/0.25mm Rev |
| Hand wheel Graduations | 0.002”(0.05mm) |
| Rotor Diameter | 7”-18” (180mm-457mm) |
| Rotor Thickness | 2.85” (73mm) |
| Drum Diameter | 6”-17.7” (152-450mm) |
| Drum Depth | 9.875”(251mm) |
| Motor | 110V/220V/380V.50/60Hz |
| Gross Weight | 325KG 715lb |
| Dimension | 1130×1030×1150 mm 45×41×46 inch |
