Brass DN 5 Red Air Coupling Socket 9 mm Hose Pillar Bulkhead

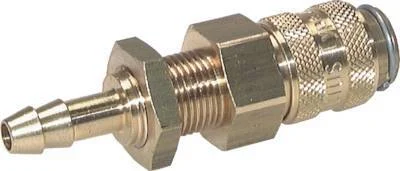

Brass DN 5 air coupling socket with a 9 mm hose pillar connection and bulkhead thread. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.

Easily mount a hose over the 9 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. The socket has bulkhead thread to mount it to a panel. This coupling is suitable for vacuum applications. The operating pressure range is -0.95 to 35 bar. The socket is suitable for temperatures between -20 to 100°C. The rated flow rate is 560 l/min. The seal material is NBR (nitrile rubber). It has a red band for easy visual identification. Each color has a different shape (octagonal, triangle, ..). Colored plugs can only be connected to sockets with the same color, but they are also compatible to non-colored sockets. The color system prevents accidental interchange of different medias or pressures.

This product is compatible with: Rectus (21, 90), Camozzi (DN 5), EWO (DN 5), KANI (DN 5), Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.

Pros:

• Easily mount a hose over the 9 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose.
• Compatible with a wide range of air couplings with the same standard profile design.
• The socket has bulkhead thread to mount it to a panel.
• It can be used for vacuum applications.

CLS5-HB series

Our air coupler offering ranges from DN 2.7 – 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.

Specifications

Hose pillar connection (mm) : 9
Nominal diameter (mm) : 5
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 35
Min temperature (°C) : -20
Max temperature (°C) : 100
Coupling features : Bulkhead,Vacuum
Min pressure (bar) : -0.95
Compatible models : Rectus (21, 90),Camozzi (DN 5),EWO (DN 5),KANI (DN 5),Festo (KD3/KS3),IMI-Norgren (233),Aventics (CP1-NW 5)
Shape : Coupling (female)
Max flow rate (l/min) : 560
Color : Red
With dust cap : No
