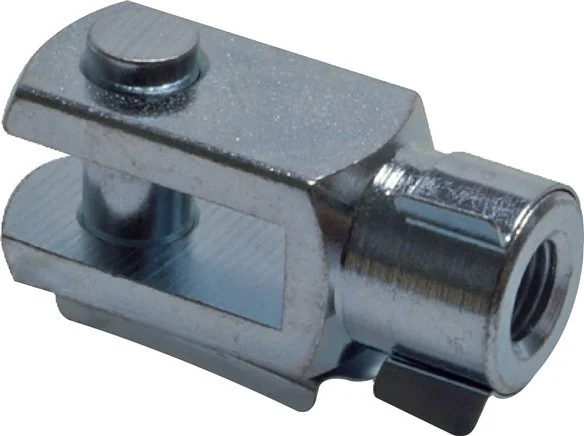

Clevis Rod-end Pin M10 x 1.25 Zinc plated steel

This zinc plated steel clevis with M10 x 1.25 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. I.a. compatible with the following cylinders: 25 mm and 32 mm (ISO 6432, ISO 15552 & ISO 21287). Including 10 mm pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.

Specifications

Material : Zinc plated steel
Cylinder ISO standard : ISO 6432,ISO 15552,ISO 21287
Rod thread : M10 x 1.25
Pin diameter (mm) : 10
Cyl-diameter ISO 6432 : 25 mm
Cyl-diameter ISO 21287 : 25 mm,32 mm
Cyl-diameter ISO 15552 : 32 mm
