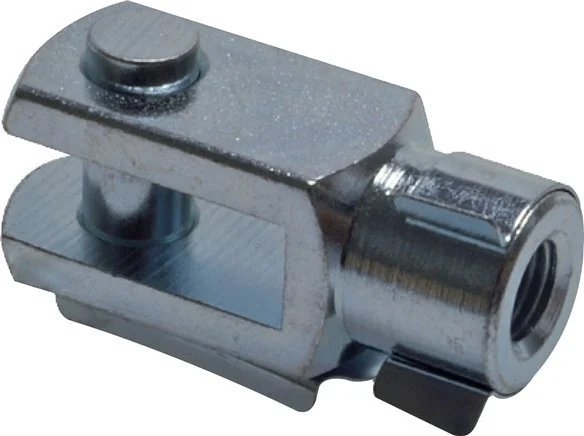

This stainless steel 303 (1.4305) clevis with M12 x 1.25 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. I.a. compatible with the following cylinders: (ISO 15552 & ISO 21287). Including 12 mm pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.
Specifications
Material : Stainless steel 303 (1.4305)
Cylinder ISO standard : ISO 15552,ISO 21287
Rod thread : M12 x 1.25
Pin diameter (mm) : 12
Cyl-diameter ISO 21287 : 40 mm
Cyl-diameter ISO 15552 : 40 mm
