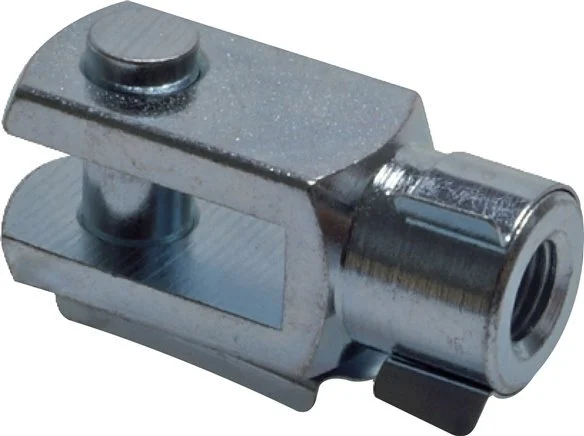

Clevis Rod-end Pin M16 Stainless steel 303 (1.4305)

This stainless steel 303 (1.4305) clevis with M16 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. I.a. compatible with the following cylinders: (ROUND 32-63MM). Including 16 mm pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.

Specifications

Material : Stainless steel 303 (1.4305)
Cylinder ISO standard : Round 2-63mm
Rod thread : M16
Pin diameter (mm) : 16
Cyl-diameter Round 32-63 : 50 mm,63 mm
