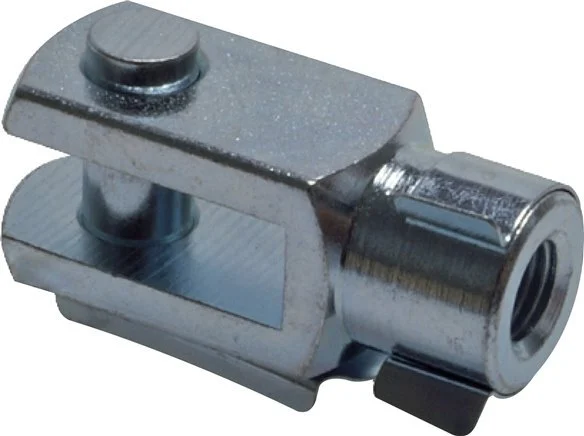

This stainless steel 1.4571 clevis with M16 x 1.5 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. I.a. compatible with the following cylinders: (ISO 15552 & ISO 21287). Including 16 mm pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.
Specifications
Material : Stainless steel 1.4571
Cylinder ISO standard : ISO 15552,ISO 21287
Rod thread : M16 x 1.5
Pin diameter (mm) : 16
Cyl-diameter ISO 21287 : 50 mm,63 mm
Cyl-diameter ISO 15552 : 50 mm,63 mm
