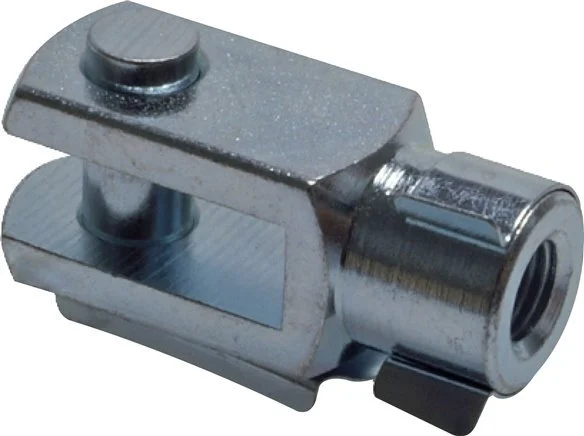

Clevis Rod-end Pin M20 x 1.5 Zinc plated steel

This zinc plated steel clevis with M20 x 1.5 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. I.a. compatible with the following cylinders: (ISO 15552). Including 20 mm pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.

Specifications

Material : Zinc plated steel
Cylinder ISO standard : ISO 15552
Rod thread : M20 x 1.5
Pin diameter (mm) : 20
Cyl-diameter ISO 15552 : 80 mm,100 mm
