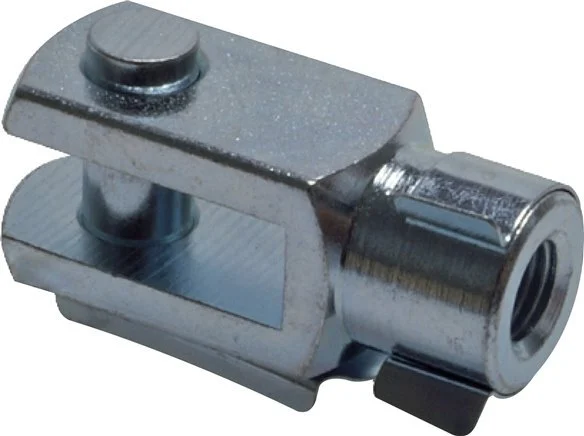

This zinc plated steel clevis with M36X2 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. I.a. compatible with the following cylinders: (ISO 15552). Including 35 mm pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.
Specifications
Material : Zinc plated steel
Cylinder ISO standard : ISO 15552
Rod thread : M36x2
Pin diameter (mm) : 35
Cyl-diameter ISO 15552 : 160 mm,200 mm
