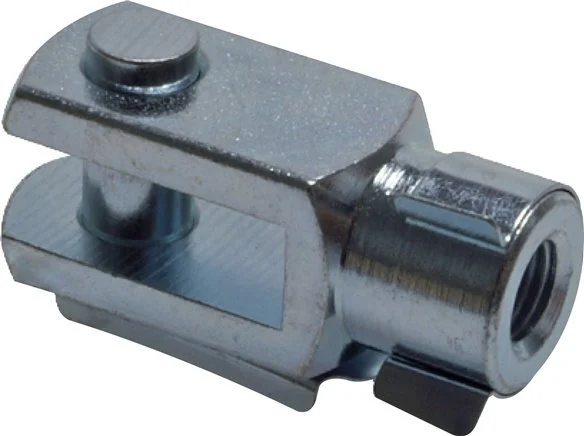

This zinc plated steel clevis with M42 x 2 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. I.a. compatible with the following cylinders: (ISO 15552). Including 42 mm pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.
Specifications
Material : Zinc plated steel
Cylinder ISO standard : ISO 15552
Rod thread : M42 x 2
Pin diameter (mm) : 42
Cyl-diameter ISO 15552 : 250 mm
