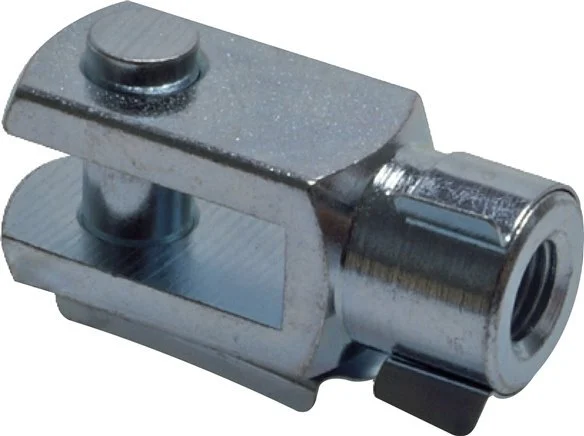

This zinc plated steel clevis with M48 x 2 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. I.a. compatible with the following cylinders: (ISO 15552). Including 50 mm pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.
Specifications
Material : Zinc plated steel
Cylinder ISO standard : ISO 15552
Rod thread : M48 x 2
Pin diameter (mm) : 50
Cyl-diameter ISO 15552 : 320 mm
