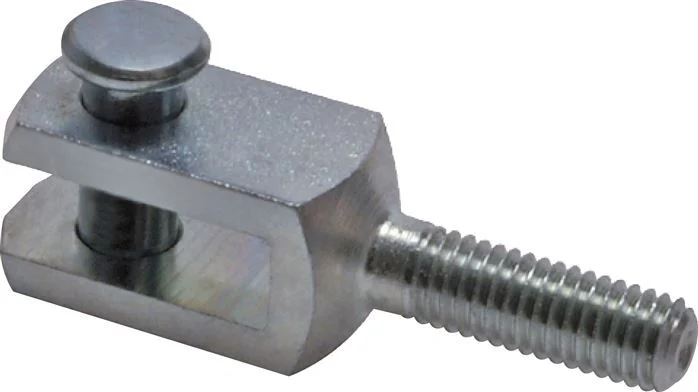

This zinc plated steel clevis with M6 male thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching female thread. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications. I.a. compatible with the following cylinders: (ISO 21287). Including 6 mm pin.
Specifications
Material : Zinc plated steel
Cylinder ISO standard : ISO 21287
Rod thread : M6
Pin diameter (mm) : 6
Cyl-diameter ISO 21287 : 20 mm,25 mm
