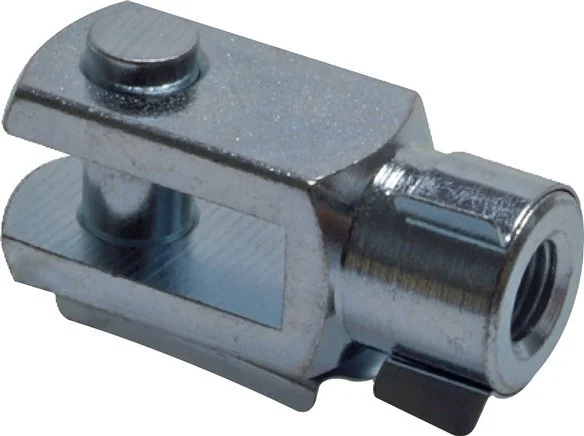

This zinc plated steel clevis with M6 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. I.a. compatible with the following cylinders: 12 mm and 16 mm (ISO 6432 & ISO 21287). Including 6 mm pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.
Specifications
Material : Zinc plated steel
Cylinder ISO standard : ISO 6432,ISO 21287
Rod thread : M6
Pin diameter (mm) : 6
Cyl-diameter ISO 6432 : 12 mm,16 mm
Cyl-diameter ISO 21287 : 12 mm,16 mm
