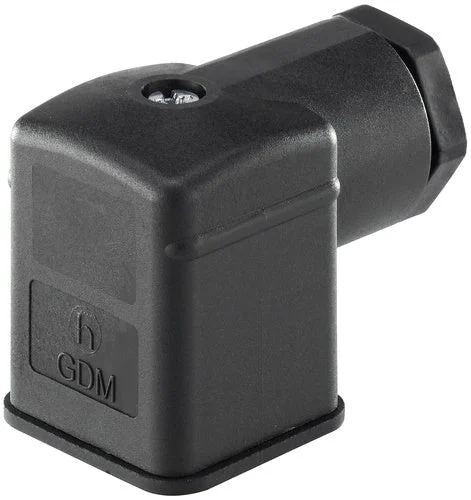

This Burkert 2518 connector has a varistor and is suitable for a DIN EN 175301-803 Form A (previously DIN 43650) connection, but simply referred to as a DIN-A connection. DIN-A connectors are also called “sugar cube connectors” or “MPM”. The Form A refers to the distance between the pins, which is 18mm. It is rated for 12..24V AC/DC, 10A, and suitable for an ambient temperature range of -40..105⁰C. It is modular, compact, IP67 certified, connects the wires at a 90⁰ angle, allows for fast assembly and reduced integration time. This version comes with a steel mounting screw, a 3m cable and as standard has an earth ground connection point. This cable plug has varistor in the circuit to protect the power supply and valve from voltage spikes by clamping the voltage to a safe level. Polarity is irrelevant as a varistor is bidirectional.
Pros:
- Adheres to DIN EN 175301-803 Form A, which is commonly used globally and can be used with numerous brands.
- This cable plug has varistor in the circuit to protect it from voltage spikes.
- Burkert proven reliability.
- Allows for fast assembly and reduced integration time.
- IP67 certified.
Cons:
- Only suitable for 12..24V AC/DC.
2518 series
The Burkert 2518 series is a range of cable plugs used to connect a power source to an electrical component, like a valve. Every plug is designed according to DIN EN 175301-803 (previously DIN 43650) Form A (shortly DIN-A). It comes in a wide variety of voltages, amperage and designs, each of which meet different protection, indication, or performance requirements. Possible circuitry options are: 2-pin without circuit, 3-pin without circuit, LED, varistor, rectifier, pole protection, freewheeling diode, HL-circuit, LR-circuit, IN-circuit, or a combination of different circuits. They connect at a 90⁰ angle and are IP65 certified, allowing for fast assembly and reduced integration time.
Specifications
Voltage : 12-24 V AC/DC
Material : Polyamide (PA)
Seal material : Thermoplastic polyurethane (TPU)
Connector features : Varistor
Electrical connection : DIN-A
Cable length (m) : 3
Degree of protection (IP) : IP67
Cable diameter (mm) : 4.5 mm to 6 mm
Height (mm) : 49.5
Nominal current (A) : 10
Temperature (°C) : -40 °C to 105 °C
