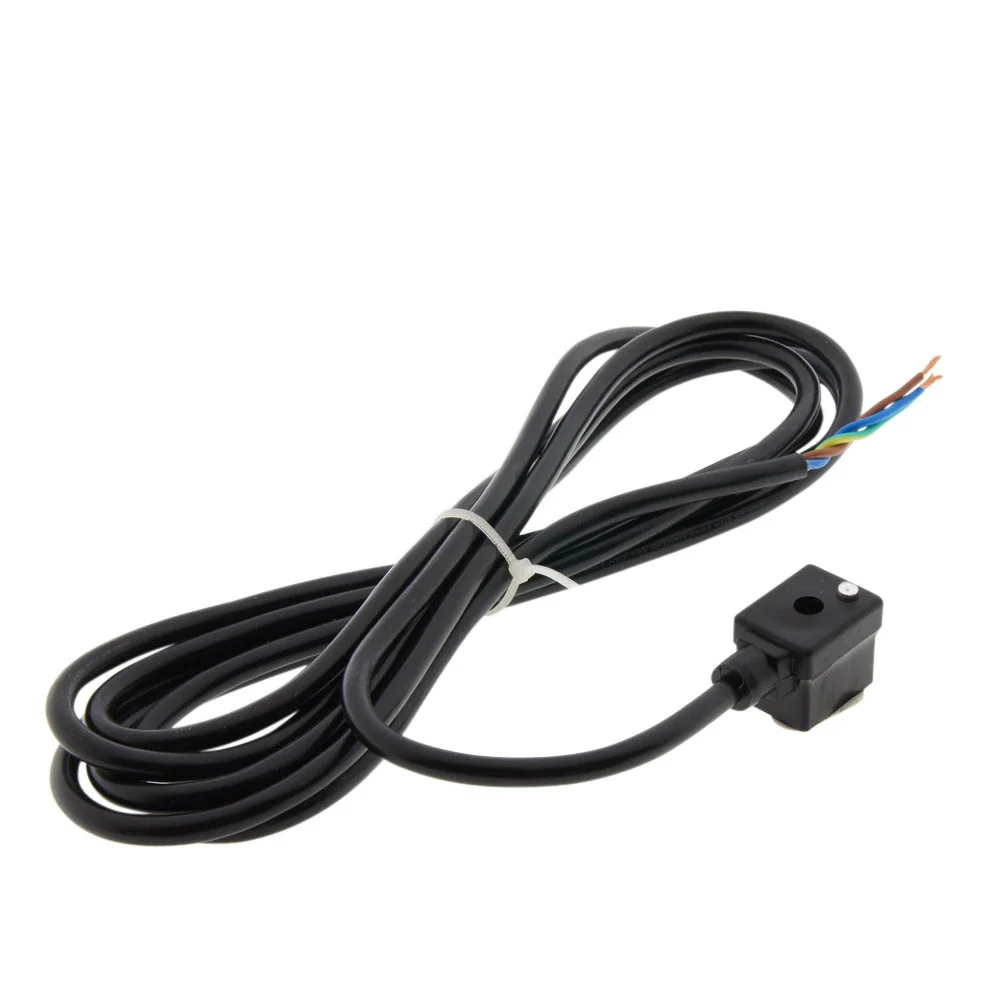

DIN-B connector (DIN43650B) including 3 meter cable (3 x 0.75mm2) for solenoid valves or timers. You do not need to attach the cable to the connector by yourself, so you can get started right away. The LED indication is a handy tool to see whether the valve is activated. Suitable for 24-400V AC/DC. When DC is used please make sure that the brown wire is connected to the positive pole, otherwise the LED does not light up.
Parameters
| Parameter | Value |
| Type | 43650B |
| Pin distance | 11 mm |
| Version | 2+1 earth |
| Protection Class | IP65 |
| Voltage | 24-400V AC/DC |
| Nominal current | 10A |
| Max. cable size | ≤3×1.5mm2 |
| Fixing screw | M3x28 |
Dimensions
Installation
- Connect the terminals (1) and (2) to the connector. With AC, polarity is not important. Always connect to the ground, don’t use the piping as earthing.
- Mount the connector and make sure no moisture can enter between coil and connector.
- Use a round cable. Make sure that drops cannot slide along the cable into the connector.
Specifications
Voltage : 24-400 V AC/DC
Connector features : LED
Type of accessory/spare part : Connector
Electrical connection : DIN-B (11mm)
Cable length (m) : 3
Degree of protection (IP) : IP65
Height (mm) : 27
