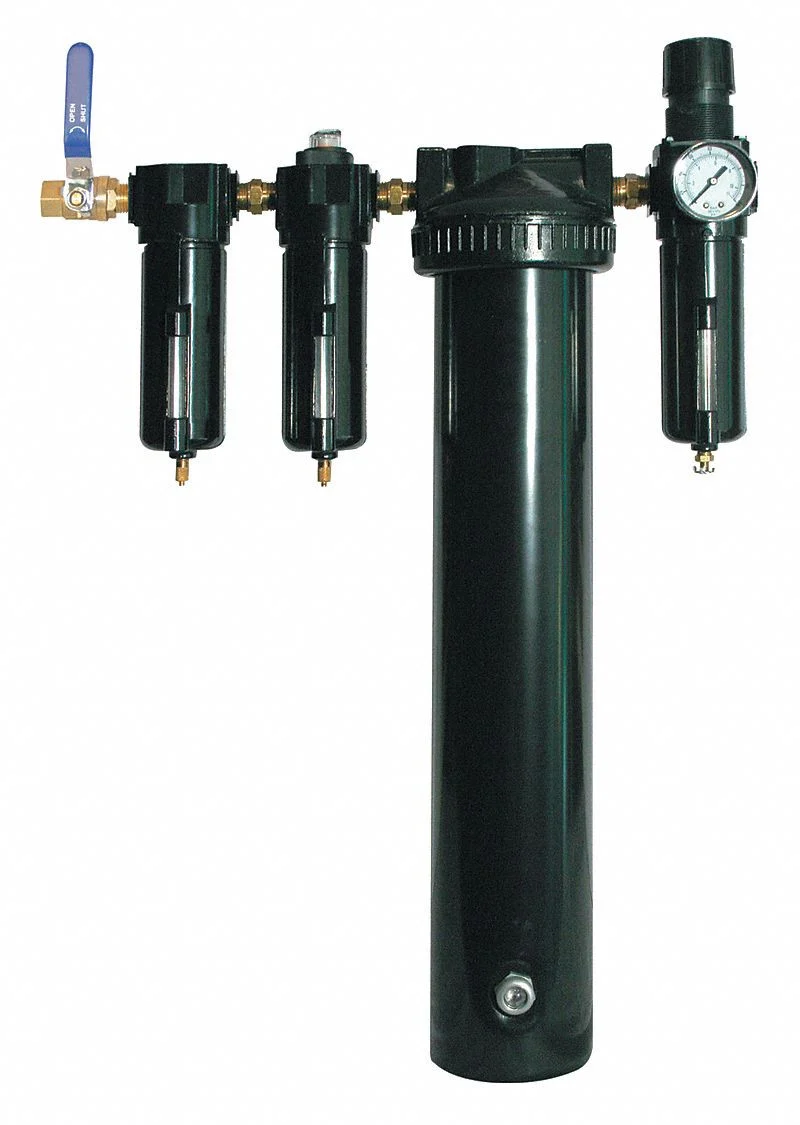

Desiccant Dryer, 5 Stage, 30 CFM

1. Specifications:

   • Number of Stages: 5
   • ISO Class: 2
   • Air Inlet Size: 1/2 in (NPT)
   • Maximum Flow Rate: 30 cfm (cubic feet per minute)
   • Maximum Operating Pressure: 250 psi
   • Maximum Operating Temperature: 120°F
   • Dew Point: -40°F
   • Filter Ratings:
     • 40 micron (Water Removing Filter)
     • 0.01 micron (Oil Removing Filter)
     • 1 gallon (Desiccant Filter)
     • 3 micron (General Filter)
   • Filters Included: Yes
   • Desiccant Material: Silica Gel
   • Drain Type: Overnight
   • Overall Dimensions:
     • Length: 15-1/2 in
     • Width: 18-1/4 in
     • Height: 27 in
   • Weight: Approximately 26.1 lbs

2. Features:

   • These multi-stage refillable desiccant dryers include additional air treatment steps, such as air filtering, to treat the air before it is sent to the point of use.
   • They are refillable with fresh desiccant and designed to be reused.

3. Application:

   • Perfect for maintaining a -40°F dew point while achieving 0% compressed air humidity.
   • Ideal for state-of-the-art refinish materials in painting applications.

So, whether you’re painting a masterpiece or just keeping your tools moisture-free, the SPEEDAIRE 500-2YNL6 Desiccant Air Dryer has your back!
