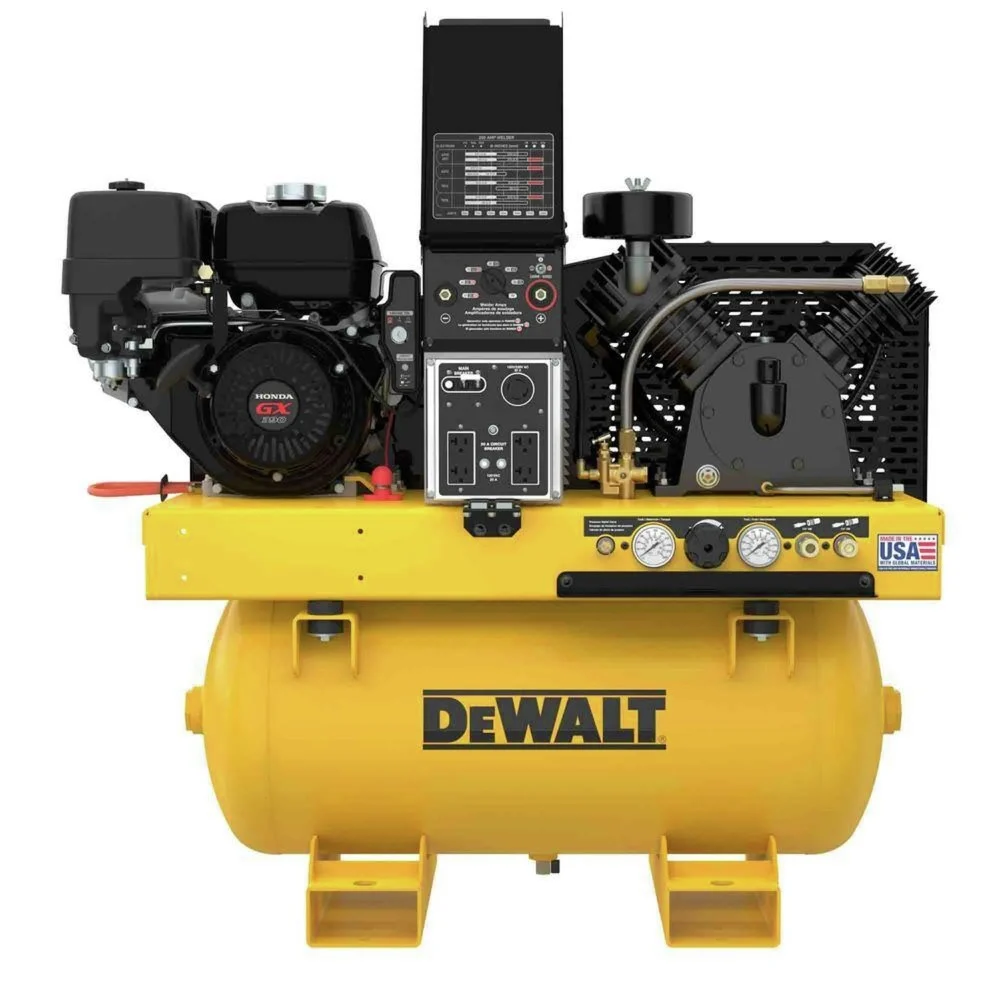

Dewalt 200 Amp 5500 Watts 2-Stage 30 Gallon 175 Max PSI Gasoline Engine Driven 3-in-1 Air Compressor/Generator/Welder – DXCMCGW1330

Product Features & specs :

Dewalt DXCMCGW1330 200 Amp 5500 Watts 2-Stage 30 Gallon 175 Max PSI Gasoline Engine Driven 3-in-1 Air Compressor/Generator/Welder

Details

Save space in the truck with a DEWALT 3-in-1. This gas-powered unit combines an air compressor, generator, and welder into one product that is ideal for on-site agricultural, industrial, and construction jobs where electricity is not available. This unit features a 2-stage cast iron pump providing enough air to run 2 lines simultaneously. The 5,500-watt generator (6,050 surge watt) is equipped with GFCI-protected outlets. The 200 amp DC stick welder includes a color-coordinated amperage selector dial and toggle switch for easy weld settings. The horizontal 30 gal. ASME tank conveniently mounts to most truck beds. All of this is powered by a dependable GX390 Honda gas engine with electric start, driving a flat multi-V groove belt system providing optimum performance for the compressor, generator, and welder.

Features:

• The DEWALT 3-in-1 30 Gallon Air Compressor-Generator-Welder supports the products needed for commercial service trucks, remote agricultural field service, construction, and industrial applications

• The 2-stage air compressor provides 13.6 SCFM @ 100 PSI to run the most demanding air tools

• The 50–200 amp DC welder is designed for shielded metal arc welding and is capable of welding steel, stainless steel, and cast iron alloys between 1/16 in. minimum to 1/2 in. maximum thickness

• The generator provides 5,500 watts of continuous power and is equipped with a GFCI protected generator panel that includes 2 120V 20 amp duplex receptacles and 1 120/240V 30 amp twist lock receptacle

• The 30 gallon horizontal truck mount tank meets the requirements of the ASME boiler and pressure vessel code

• The DEWALT 3-in-1 Compressor-Generator-Welder is powered by an electric start Honda GX390 gas engine and is perfect for remote jobs when electricity is not available

What’s Included:

• 200 Amp 5500 Watts 2-Stage 30 Gallon 175 Max PSI Gasoline Engine Driven 3-in-1 Air Compressor/Generator/Welder – DXCMCGW1330

Power Source

Gas

Drive System

Belt Drive

Amperage

200

Engine Make

Honda

Engine Speed (RPM)

3600

Wattage (Rated)

5500

Type

Air Compressor/Generator/Welder

Tank Construction

Cast Iron

Tank Orientation

Horizontal

Outlet Type(s)

GFCI

Rated Watts

5500

Tank Capacity

30 gal

Engine Model

GX390

Pump Type

Twin-Cylinder

Starter Type

Electric

Voltage

120V

Engine Displacement

389cc
