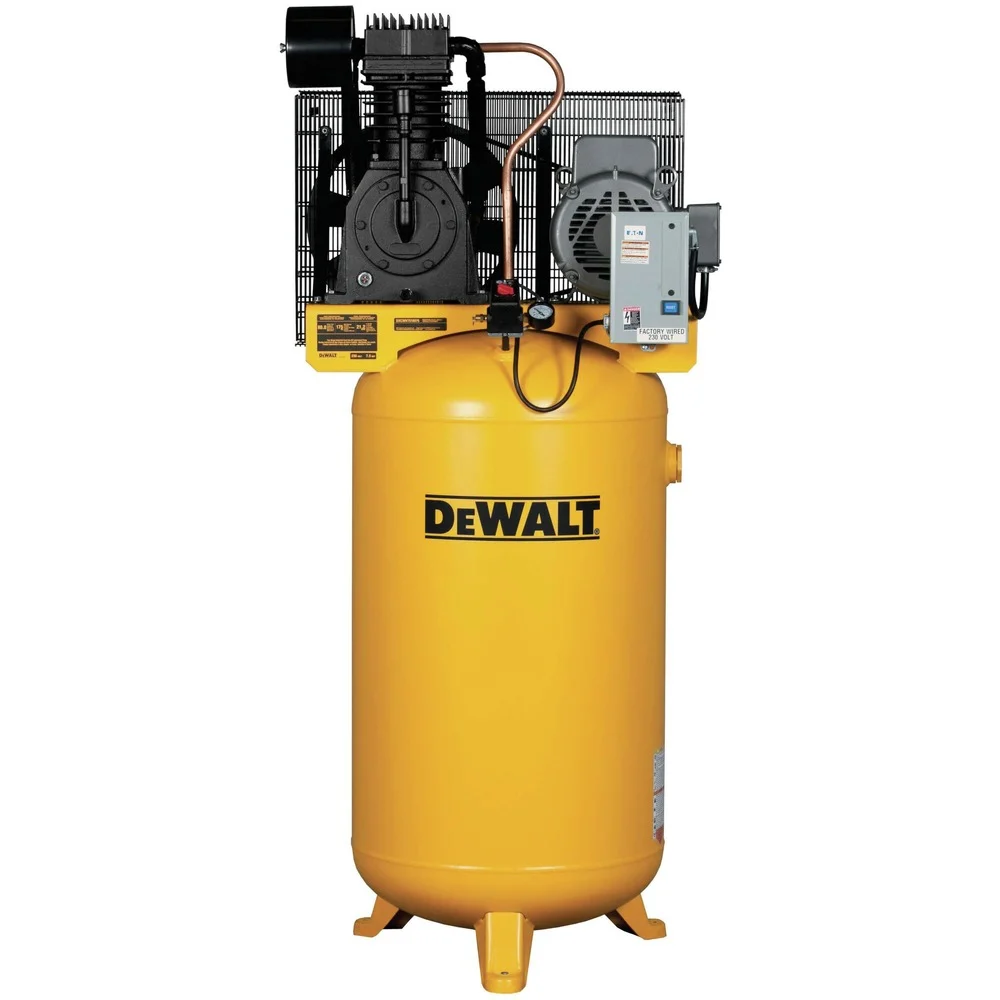

Dewalt 7.5 HP 80 Gallon 2-Stage Stationary Corded Air Compressor – DXCMV7518075

Product Features & specs :

Dewalt DXCMV7518075 7.5 HP 80 Gallon 2-Stage Stationary Corded Air Compressor

Details

Get a heavy-duty professional tool at an affordable price with the DEWALT 7.5 HP 80 gal. BALDOR 2-Stage Oil-Lube Industrial Air Compressor. A BALDOR 4-pole, 1725 RPM industrial-class electric motor provides exceptional performance and durability. Patented deep-grove directional cooling fins and a patented cast iron flywheel with large extended fins improved cooling of the pump and maintain low pump RPMs. This compressor has 175 maximum psi, allowing you to operate a wide range of tools and maintain longer run times. The unique belt guard improves compressor pump cooling by as much as 60 degrees over other belt guard designs.

Features:

• Offers an 80 gal. ASME tank size and maximum pressure of 175 psi

• Includes single phase ability and a running horse power of 7.5

• Featuring 22.1-CFM at 100 psi and 21.2-CFM at 175 psi with 230V

• Built-in extra capacity oil reservoir ensures lower oil temperatures extends life

What’s Included:

• 7.5 HP 80 Gallon 2-Stage Stationary Corded Air Compressor – DXCMV7518075

Power Source

Corded

Lubrication System

Oil-Lube

Drive System

Belt Drive

Amperage

40

UL Safety

Yes

Power Type

Electric

Pump Speed (RPM)

1725

Motor Type

Brushed

Tank Construction

Cast Iron

Tank Orientation

Vertical

Tank Capacity

80 gal

Operating Pressure (PSI)

175

Lubrication

Oil-Lube

Tank Style

Stationary

CSA Safety

No

Pump Type

Reciprocating

Phase

1

Air Inlet Size

1/4 in

RPM

1725

Horsepower

7.5

Air Consumption at 90 PSI (SCFM)

14.1

Voltage

240V

Fitting Size

1/4 in

Air Consumption at 40 PSI (SCFM)

13.7

Running Horsepower

7.5

Noise Rating (dBA)

84

ETL Safety

No

Length

37 in.

Width

29 in.

Height

79 in.

Weight

623 lbs.

Warranty Term

2 Year
