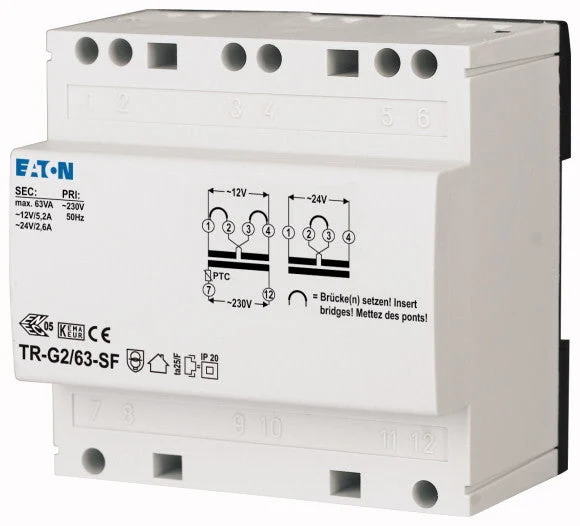

EATON INDUSTRIES Bell Transformer – 272485

Eaton Industries bell transformer, (LxWxHxh) 55x90x90mm, primary voltage 230V, secondary voltage 1 12V, secondary voltage 2 24V, secondary current 1 5.2A, secondary current 2 2.6A, transformer type safety transformer, suitable for surface mounting (stucco).

Specifications

Primary voltage (V) : 230
Secondary voltage 1 (V) : 12
Secondary voltage 2 (V) : 24
Secondary voltage 3 (V) : 0
Secondary amperage 1 (A) : 5.2
Secondary amperage 2 (A) : 2.6
Secondary amperage 3 (A) : 0
Max. output power (W) : 0
Max. output current (A) : 0
Max. power loss (W) : 0
Type of transformer : Safety transformer
Surface mounting : Yes
Flush-mounted installation : No
Modular version : Yes
Length (mm) : 90
Width (mm) : 90
Height (mm) : 60
Width in number of modular spacings : 5
Short-circuit protected : Yes
Temperature protection : Yes
With on/off switch : No
