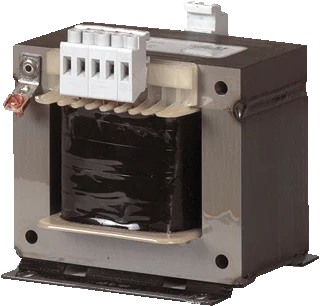

EATON INDUSTRIES STN 1-Phase Transformer 230/400V | 204986

Eaton Industries STN400/230Vac single phase control transformer, (wxdxh), 121x100x124mm secondary voltage 1 230V primary voltage 1 400V (measuring), apparent power 500VA protection degree (IP00), conductor material copper insulation material class compliant IE B, relative shortcircuit voltage Uk 4.1%.

Specifications

Primary voltage 1 (V) : 400 V to 400 V
Primary voltage 2 (V) : 0 V to 0 V
Primary voltage 3 (V) : 0 V to 0 V
Primary voltage 4 (V) : 0 V to 0 V
Primary voltage 5 (V) : 0 V to 0 V
Primary voltage 6 (V) : 0 V to 0 V
Primary voltage 7 (V) : 0 V to 0 V
Primary voltage 8 (V) : 0 V to 0 V
Primary voltage 9 (V) : 0 V to 0 V
Primary voltage 10 (V) : 0 V to 0 V
Secondary voltage 1 (V) : 230 V to 230 V
Secondary voltage 2 (V) : 0 V to 0 V
Secondary voltage 3 (V) : 0 V to 0 V
Secondary voltage 4 (V) : 0 V to 0 V
Secondary voltage 5 (V) : 0 V to 0 V
Secondary voltage 6 (V) : 0 V to 0 V
Secondary voltage 7 (V) : 0 V to 0 V
Secondary voltage 8 (V) : 0 V to 0 V
Secondary voltage 9 (V) : 0 V to 0 V
Secondary voltage 10 (V) : 0 V to 0 V
Rated apparent power (VA) : 500
Short-circuit-proof : No
Type of insulation material according to IEC 85 : B
Relative short circuit voltage (%) : 4.1
Degree of protection (IP) : IP00
Built as energy saving transformer : No
Built as isolating transformer : No
Built as safety transformer : No
Conductor material : Copper
Ring core : No
Modular version : No
Suitable for mounting on PCB : No
