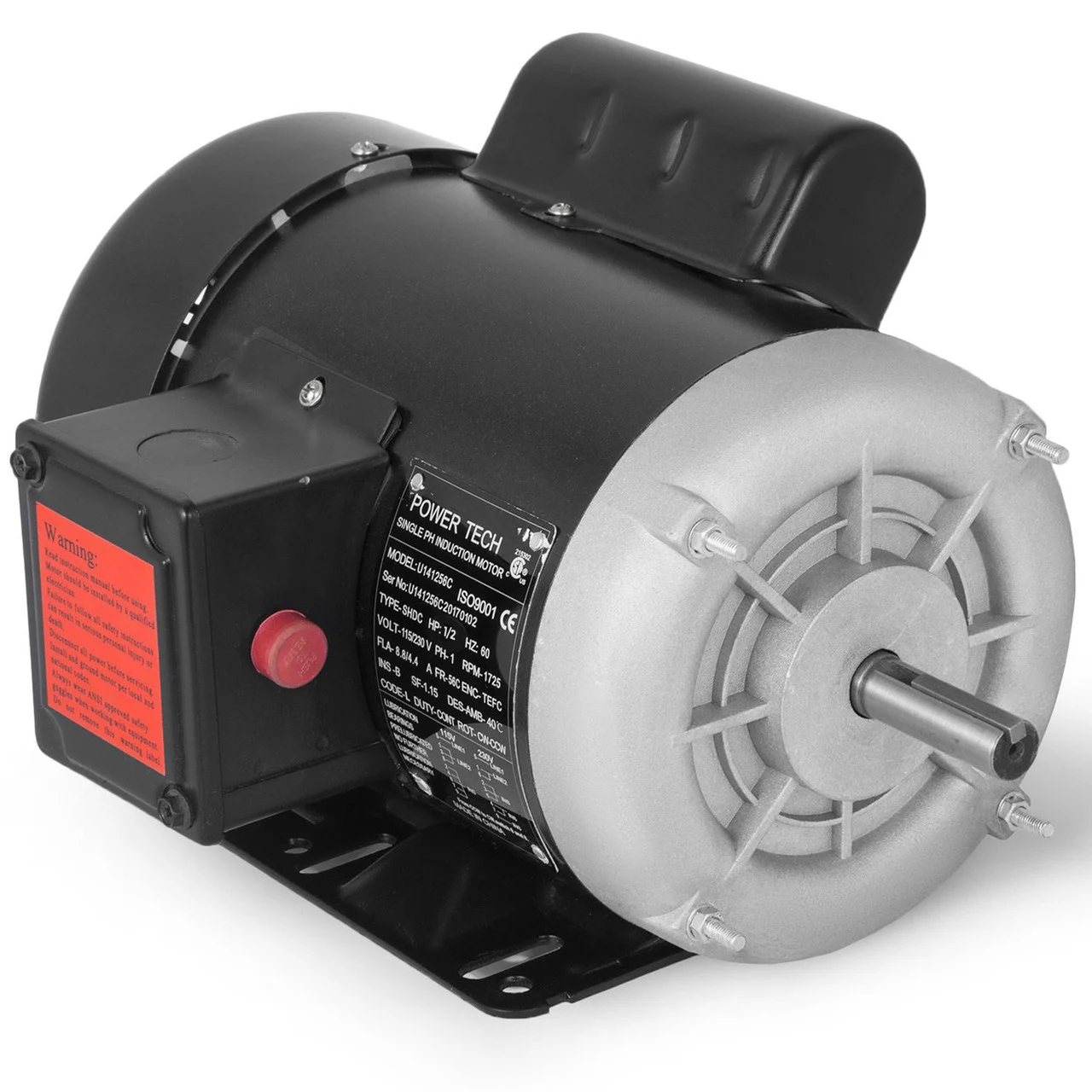

Electric Compressor Motor, 3/4 HP, Rated Speed 1725 RPM Single Phase Electric Motor, AC 115V 230V Air Compressor Motor 56C Frame, Suitable for Agricultural Machinery and General Equipment

· Single Phase Electric Motor: This electric compressor motor runs at 3/4 HP; Phase: Single Phase, 4 Pole; Voltage: 115/230V; Full Load Amps: 11.0/5.5 A; Frequency: 60 Hz; Frame: 56 Frame; Rotation: CW – CCW(Reversible); AC Motor Type: Induction Motor. Push your machine to the limits with this well-balanced motor!
· Excellent Working Efficiency: The single phase electric motor features a 1725 RPM rated speed, and 1800 RPM synchronous speed. Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft; Shaft Length: 1.875 in / 4.8 cm; Service Factor: 1.15; Insulation Class: B. The upper hardness shaft is more durable. Works above and beyond while maintaining high performance.
· Sturdy Steel Construction: The 3/4 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. High-quality capacitors and ball bearings ensure long service life.
· High-Speed Cooling Fan: Enclosure Type: TEFC(Totally Enclosed Fan Cooled). The big fan at one end cools the 3/4 HP electric motor single phase for hours while running, even in dusty or damp environments. Multiple heat dissipation strips guard chips and objects against dropping into the motor and causing accidents. Power and protection that you can trust.
· Apply in Multiple Sectors: The air compressor motor 1725 rpm is commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc. Ensure our motor matches the specific specifications listed on your compressor before purchase.
