Effective Area
- 2 m³
Features
- Auto Shut-Off, Boiling Point Sensor
Gross Weight
- 19 lbs
Heater Dimension
- 22.4×4.7×14.9in
Inlet & Outlet Dia.
- 2.4in
Item Height
- 14.9in
Item Length
- 22.4in
Item Width
- 4.7in
Material
- Metal
Model
- Heater Thermostat 15KW
MPN
- TS20220411013
Package Size
- 21.6×4.7×15.3in
Phase
- 1/3
Pipe Dia.
- 1.5in
Pipe Dimeter
- 1.5 inch
Power
- 15KW
Power Source
- Electric
Suitable For
- In Ground Pools
Temperature Setting Range
- 72-122℉
Thermostat Dimension
- 22.4×4.7×14.9in
Type
- Heater Thermostat
Voltage
- AC220V, 50Hz
Description:

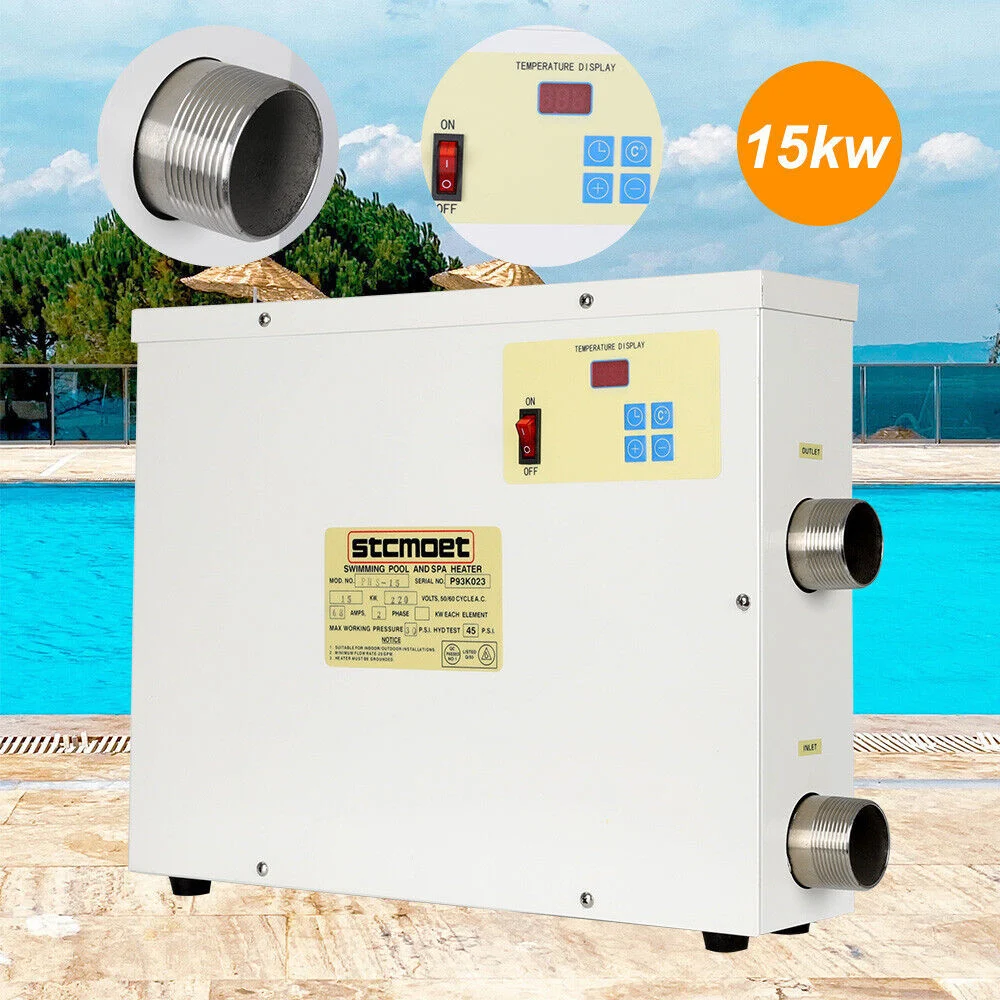

The 15KW pool thermostats are specially used for small pool less than 2CBM, massage pool or bathtub to keep water warm. This water thermostat is constructed with a stainless steel tube and aluminum-coated plate. It uses the constant temperature control system and intelligent self-diagnose function to reduce unnecessary water circulation and protect you from danger. It is equipped with a temperature display to adjust the water temperature by pressing buttons.
Application:
The pool heater thermostat provides consistent heat distribution with high efficiency. You can use it to maintain the water temperature for many places such as swimming pool, hydrotherapy pool, landscaped pool and bathing pool.
Features:
【Superior Thermostat】The heating tube of the swimming pool heater adopts stainless steel with good corrosion resistance. Stable and reliable performance maintains the water temperature automatically.
【Temperature Control】The temperature sensor replaces the traditional magnetic flow switch. You can increase or decrease the set temperature by flipping buttons. The panel will blink and display temperature measured by the temperature sensor. The flow-temperature sensor is always under the control of software, accurately and timely monitoring the temperature status of the whole heating system.
【Intelligent Self-Checking Function】This unique function has multiple protections for ultra-high temperature, short circuit and high pressure. It quickly reacts and displays corresponding information for the user or technician to judge where the fault is.
【Installation Method】The simple installation method allows you to use the pool heater quickly. You can refer to the diagram above. The humanized system ensures that you will be safe and labor-saving during the whole process.
【Multiple Advantages】Our product features constant temperature and stable performance. The type of traditional heating has a huge temperature difference with large electricity consumption and slow heating speed.
Notes:
Do not heat sea water or salt water.
Once unexpected high temperature 60℃ occurs, the temperature switch cuts off the system. You need to cut off the main power supply, resolve the fault and wait the temperature for falling below normal temperature, then press the ‘Reset’ button to restart the heater.
Please pour the hot or warm water into the minipool, not cold water. This machine is just used as a thermostat!
The pool heaters can only cover less than 2m³ (528 us gal) area!
