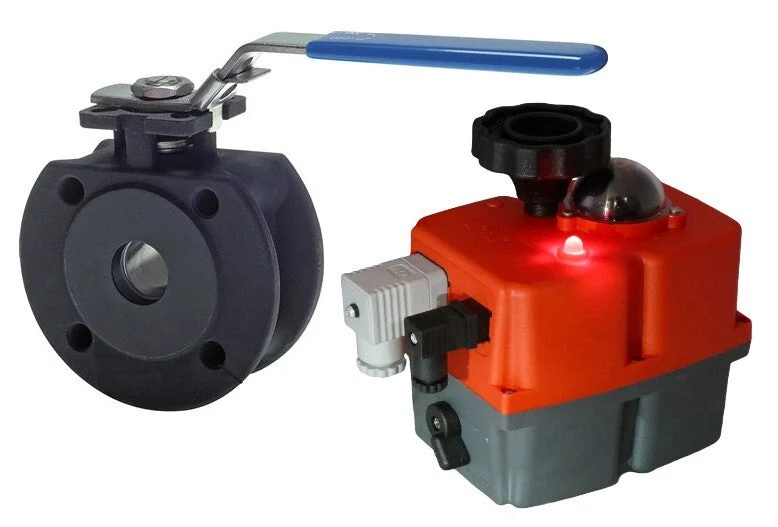

Electrical Actuated Flanged Ball Valve 2-Way DN65 PN16 Steel 24-240 V AC/DC

This electrically actuated 2-way DN 65 flanged ball valve with a full bore provides reliable on/off flow control. The valve is suitable for water, oil, air and fuel up to a maximum pressure of 16 bar (232 psi) and vacuum (max. -0.9 bar or -13 psi). The valve operates within a temperature range from -20 to 180 °C (-4 to 356 °F). The actuator can withstand ambient temperatures between -10 and 50 °C (14 and 122 °F), so especially for higher media temperatures make sure that the environment is well ventilated. The valve turns from fully closed to open in 34 seconds. The actuator requires a supply voltage of 24-240 V AC/DC. The actuator features 3-point control. Check the manual for the wiring and installation instructions. The motor can be operated for 30 minutes continuously after which it needs a short resting period to cool down. When the valve reaches an end position, the electric motor is turned off and almost no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator can be mounted on the valve via the ISO 5211 flange. Before connecting the actuator, please read the manual carefully. The actuator has a robust aluminum housing with IP67 rating, provided that an appropriate cable is connected.

Pros:

• Unobstructed flow path thanks to the full bore design
• Easy installation and maintenance thanks to the DN 65/PN 16 flange
• Two extra limit switches for position feedback
• The actuator has a clear visual position indicator
• The valve features a handwheel for manual operation
• Better energy efficiency than a pneumatic actuated valve

Cons:

• The electric actuator is slower than a pneumatic actuator
• The installation length is only 94 mm (±2 mm), making it very compact, but it’s not a standard size, so measuring is necessary for replacement

Specifications

Connection size : DN 65 Flange
Voltage : 24 V AC,24 V DC,120 V AC,230 V AC
Material : Steel
Seal material : Teflon (PTFE)
Control signal : Three-point (open-close)
Max pressure difference (bar) : 16
Recommended for : Water,Oil,Air,Fuel,Vacuum
Operating time (s) : 34
Connection type : Flange
Ball valve feature : Manual override,End position feedback
Kv value [m3/h] : 507
Valve bore (mm) : 65
Max actuator torque (nm) : 140
Max temperature (°C) : 180
Min temperature (°C) : -20
Degree of protection (IP) : IP67
Position feedback : Open & close limit switch
Manual override : Yes
Ground characteristic : Equal percentage
Adjustable operating range : Yes
Ambient temperature (°C) : -20 °C to 70 °C
Duty cycle : 75%
Flange compression class : PN 16
Material ball seal : Teflon (PTFE)
Max. electric power input (VA) : 105.6
Position reporting signal : None
Spindle seal material : NBR (nitrile rubber)
Transmission : With cogwheels
Vacuum (bar) : -0.9
With end contacts : Yes
Voltage : 24-240 V AC/DC
