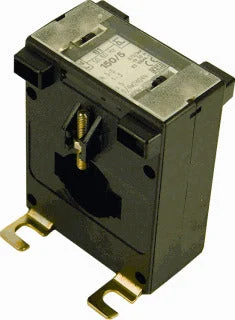

Eleq RM/5A current measuring transformer. Primary measuring current 100A, secondary nominal 5A. Secondary (measuring), apparent power 3.5VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 10.5mm, width Opening 30mm. Snap fastening. Opening diameter 24.5mm.
Specifications
Primary rated current (A) : 100
Secondary rated apparent power (VA) : 3.5
Secondary rated current (A) : 5
Number of phases : 1
Secondary connection : Screw connection
Output voltage : No
Over current limiting factor : FS 5
Calibrated : No
Conductor feedthrough : 24 mm
Number of primary inputs : 1
Height opening (mm) : 10.5 mm to 10.5 mm
Model : Attachable current transformer
Width opening (mm) : 30 mm to 30 mm
With shock protection : Yes
Opening diameter (mm) : 24.5
Snap mounting : Yes
With copper rail : No
