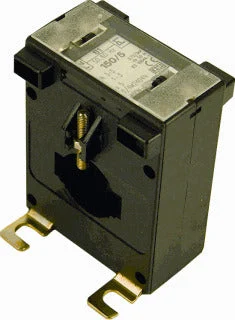

Eleq RM/5A current measuring transformer. Primary measuring current In 125A. Secondary nominal current 5A. Secondary (measuring), apparent power 4VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 10.5mm. Width opening 30mm. Snap fix. Opening diameter 24.5mm.
Specifications
Primary rated current (A) : 125
Secondary rated apparent power (VA) : 4
Secondary rated current (A) : 5
Number of phases : 1
Secondary connection : Screw connection
Output voltage : No
Over current limiting factor : FS 5
Calibrated : No
Conductor feedthrough : 24 mm
Number of primary inputs : 1
Height opening (mm) : 10.5 mm to 10.5 mm
Model : Attachable current transformer
Width opening (mm) : 30 mm to 30 mm
With shock protection : Yes
Opening diameter (mm) : 24.5
Snap mounting : Yes
With copper rail : No
