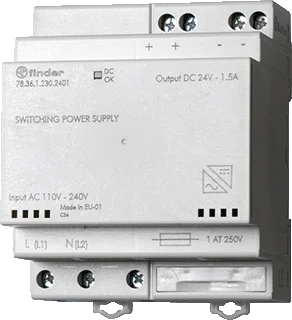

Finder 78 DC Power Supply 24V | 78.36.1.230.2401

Finder 78 DC power supply unit, (wxdxh), 70×56.5×88.8mm. 1st Secondary voltage 24V. Voltage type AC/DC. Nominal supply voltage AC 50 Hz 110-240V. output current 11.7A, power output 36W. Modular design for rail mount. Nominal output voltage 124V.

Specifications

Voltage type of supply voltage : AC/DC
1st secondary output voltage at DC (V) : 24 V to 24 V
2nd secondary output voltage at DC (V) : 24 V to 24 V
Max. output current 1 (A) : 1.7
Max. output current 2 (A) : 1.7
Secondary voltage adjustable : No
Nominal value output voltage 1 (V) : 24
Nominal value output voltage 2 (V) : 24
Nominal value output current 1 (A) : 1.5
Nominal value output current 2 (A) : 1.5
Rated voltage AC (V) : 110 V to 240 V
Rated voltage (AC 60 Hz) (V) : 110 V to 240 V
Rated voltage DC (V) : 220 V to 220 V
Electrical connection : Screw connection
Output voltage stabilized : Yes
Power consumption (VA) : 57.5
Power output (W) : 36
Stabilized : Yes
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Suitable for safety functions : No
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : Yes
Wall mounting possible : No
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 88.8
Built-in width (mm) : 70
Width in number of modular spacings : 4
