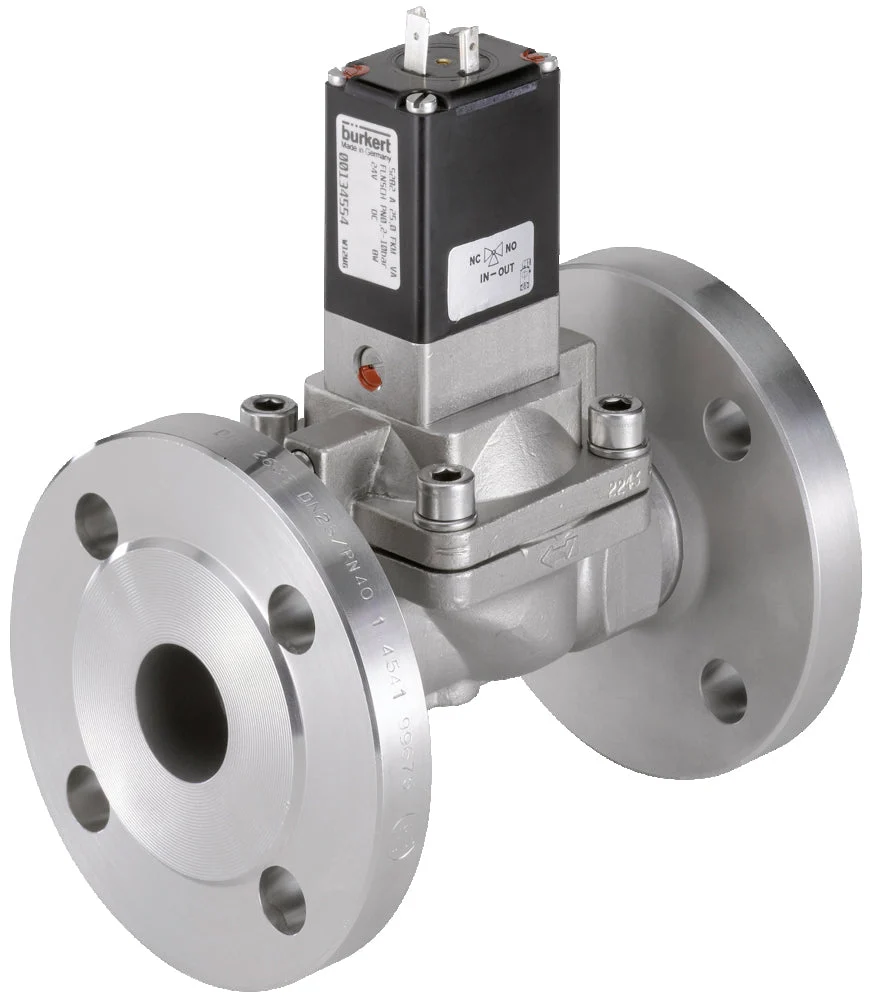

Bürkert indirect operating 2/2-way solenoid valve with DN 50 flange and 24V DC (direct current) coil. The valve has a stainless steel housing with NBR sealing and an orifice size of 50 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. However, the function can easily be changed between NC and NO by rotating the pilot valve on the top side by 180 degrees. This model is media separated and can therefore be used for slightly contaminated and aggressive media. The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. The NBR (nitrile rubber) sealing is suited for water, air, alcohol and is fairly resistant to oil and petrol. NBR is unsatisfactory with oxidising fluids. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. You can separately adjust the opening and closing time of the valve with set screws, for example to prevent water hammer. Energy efficient design for a long product lifecycle. The open or closed status is indicated with an electrical position feedback signal.
Important advantages
- Including an electronic sensor for determining the state of the valve
- The valve position can be determined with an electrical feedback signal
- Can be used with slightly contaminated or aggressive media thanks to the media separated design
- The response times (open and close) can be adjusted separately
- Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
- The risk of water hammer is low, thanks to the dampened closing
- Bürkert design: proven reliability & durability
5282 series
The Bürkert 5282 solenoid valve is used for the most demanding applications. The valve is built to last. The media separation makes the 5282 also suitable for aggressive media. Other interesting features are the standard manual override and adjustable opening and closing times. Furthermore, the circuit function can easily be changed from NC to NO, by simply rotating the 3/2 way pilot valve on top of the main valve body. The 5282 valve is available with a wide variation of housing and sealing materials. The brass housing satisfies all European drinking water requirements. Various ATEX versions are available for potentially explosive environment.
Please note: this product is made to order and can therefore unfortunately not be returned.
Specifications
Connection size : 50 mm
Connection type : Flange
Function : Normally closed
Voltage : 24 V DC
Material : Stainless steel
Seal material : NBR (nitrile rubber)
Operation : Indirect
Recommended for : Water,Air,Oil,Alcohols,Lubricant,Combustible gases,Sea water
Min pressure difference (bar) : 1
Max pressure (bar) : 10
Features : Media separation,Adjustable response time,Energy efficient (under 9 VA),Position feedback,Anti-waterhammer
Material quality : Stainless steel 1.4581
Valve bore (mm) : 50
Electrical connection : DIN-A
Nominal power (W) : 8
Valve ports/positions : 2/2 way
Model : Straight
Flange compression class : PN 16
Peak power (W) : 8
Indirect effect : Yes
Explosion safety : None
