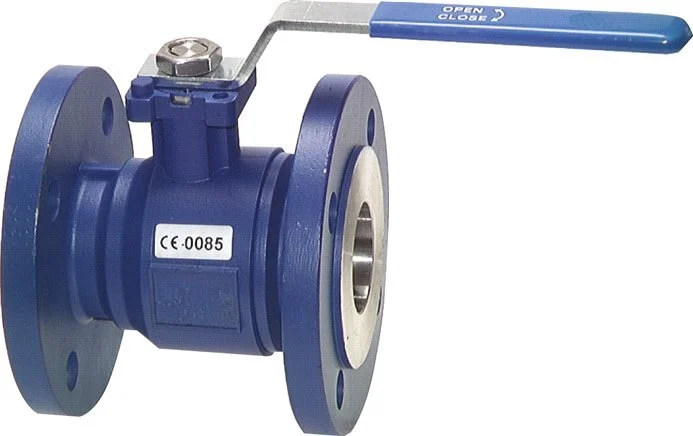

This 2-way DN 32 flanged ball valve is made of cast steel with Teflon (PTFE) sealings. Standardized length of 130 mm conforming to DIN 3202-F4 (EN 558-1 Row 14). The valve is suitable for water, oil, air and fuel up to a maximum pressure of 40 bar (580 psi) and vacuum (max. -0.9 bar or -13 psi). This valve is DVGW certified for gas (MOP 40 bar) in accordance with EN 14141. The valve can be equipped with an actuator using the ISO 5211 F05 flange, but it requires a separate adapter and mounting bracket, which are not provided. The valve operates within a temperature range from -20 to 180 °C (-4 to 356 °F). An actuator can be mounted using a mounting flange according to ISO 5211 when it is used in conjunction with a special bracket and shaft adapter.
Pros:
- Standardized installation length of 130 mm according to DIN 3202-F4
- Unobstructed flow path thanks to the full bore design
- Suitable for vacuum
- Easy installation and maintenance thanks to the standardized DN 32/PN 40 flange
Cons:
- To disassemble the valve for inspection and cleaning it has to be completely removed from the pipe
Specifications
Connection size : DN 32 Flange
Connection type : Flange
Material : Cast steel
Seal material : Teflon (PTFE)
Max pressure difference at 20 °C (bar) : 40
Recommended for : Water,Oil,Air,Fuel,Vacuum
Min temperature (°C) : -20
Max temperature (°C) : 180
Vacuum (bar) : -0.9
Approval : Gas
Valve bore (mm) : 32
Kv value [m3/h] : 105
Standard : DIN 3202-F4 (EN 558-1 Row 14 (Lenght)),EN 14141 (gas)
Housing construction : 2-part
ISO 5211 Square head size (mm) : 14
ISO 5211 Flange type : Flange F05
Model : Straight
Article compression class : PN 40
Ball seal : Teflon (PTFE)
Flange compression class : PN 40
Full bore : Yes
Material ball : Stainless steel
Spindle seal material : FKM (FPM)
