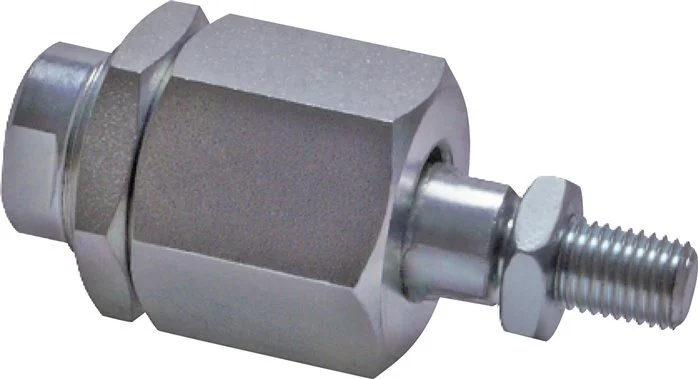

Floating Joint M16 x 1.5 for Cylinder Zinc plated steel

This zinc plated steel floating joint mounting accessory can absorb any off-centering accuracy between the driven body and the cylinder. It has a female input for the pneumatic cylinder`s rod-end and a shaft output, both being M16 x 1.5 threads. It has a rotational angle range of ±4° and allows for a linear deviation of ±2 mm. It is designed for repetitive usage of either compression or tension forces.This floating joint is suitable for ISO 15552 & ISO 21287 with a diameter of.

Specifications

Material : Zinc plated steel
Cylinder ISO standard : ISO 15552,ISO 21287
Rod thread : M16 x 1.5
Cyl-diameter ISO 21287 : 50 mm,63 mm
Cyl-diameter ISO 15552 : 50 mm,63 mm
Max. axial misalignment (mm) : 2
