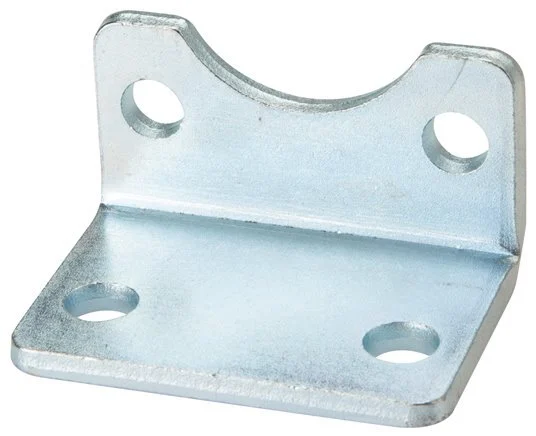

This foot flange is designed for fixed mounting of ISO 15552 pneumatic cylinders with a 100 mm mm diameter. They allow for easy assembly and disassembly. They create a rigid mounting, which means the cylinder must be properly aligned to the load. They must be used on the front and back end of the cylinder (2 needed). After securing one to the cylinder, it has a 90° bend to then secure it to a mounting surface parallel to the cylinder`s rod.
Specifications
Material : Stainless steel 316 (1.4401)
Cylinder ISO standard : ISO 15552
Cyl-diameter ISO 15552 : 100 mm
