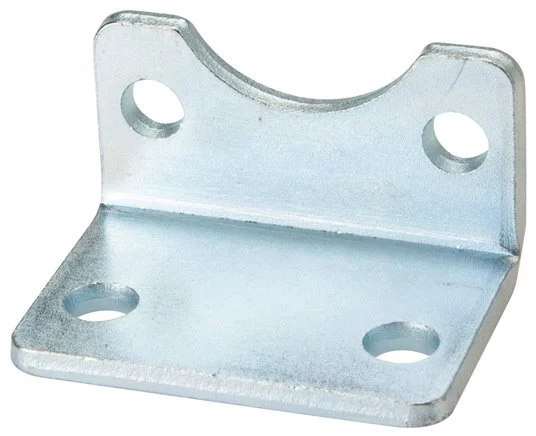

Foot Mount 16 mm ISO 21287 Zinc plated steel

This foot flange is designed for fixed mounting of ISO 21287 pneumatic cylinders with a 16 mm mm diameter. They allow for easy assembly and disassembly. They create a rigid mounting, which means the cylinder must be properly aligned to the load. They must be used on the front and back end of the cylinder (2 needed). After securing one to the cylinder, it has a 90° bend to then secure it to a mounting surface parallel to the cylinder`s rod.

Specifications

Material : Zinc plated steel
Cylinder ISO standard : ISO 21287
Cyl-diameter ISO 21287 : 16 mm
