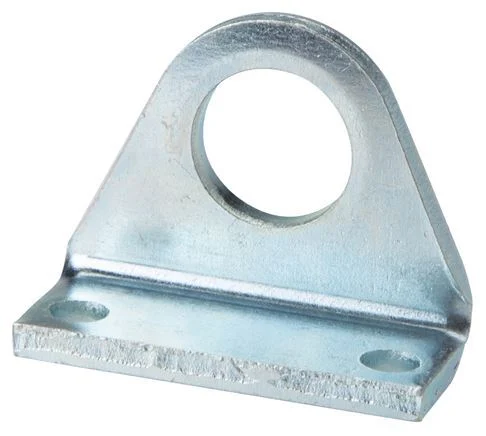

This foot flange is designed for fixed mounting of ISO 6432 pneumatic cylinders with a 20 mm and 25 mm mm diameter. They allow for easy assembly and disassembly. They create a rigid mounting, which means the cylinder must be properly aligned to the load. They must be used on the front and back end of the cylinder (2 needed). After securing one to the cylinder, it has a 90° bend to then secure it to a mounting surface parallel to the cylinder`s rod.
Specifications
Material : Stainless steel 304 (1.4301)
Cylinder ISO standard : ISO 6432
Cyl-diameter ISO 6432 : 20 mm,25 mm
