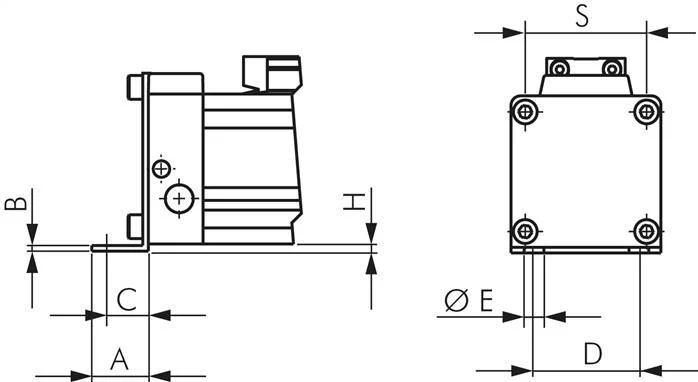

This foot flange is designed for fixed mounting of Rodless pneumatic cylinders with a 63 mm mm diameter. They allow for easy assembly and disassembly. They create a rigid mounting, which means the cylinder must be properly aligned to the load. They must be used on the front and back end of the cylinder (2 needed). After securing one to the cylinder, it has a 90° bend to then secure it to a mounting surface parallel to the cylinder`s rod.
Specifications
Cylinder ISO standard : Rodless
Cyl dimeter Rodless : 63 mm
