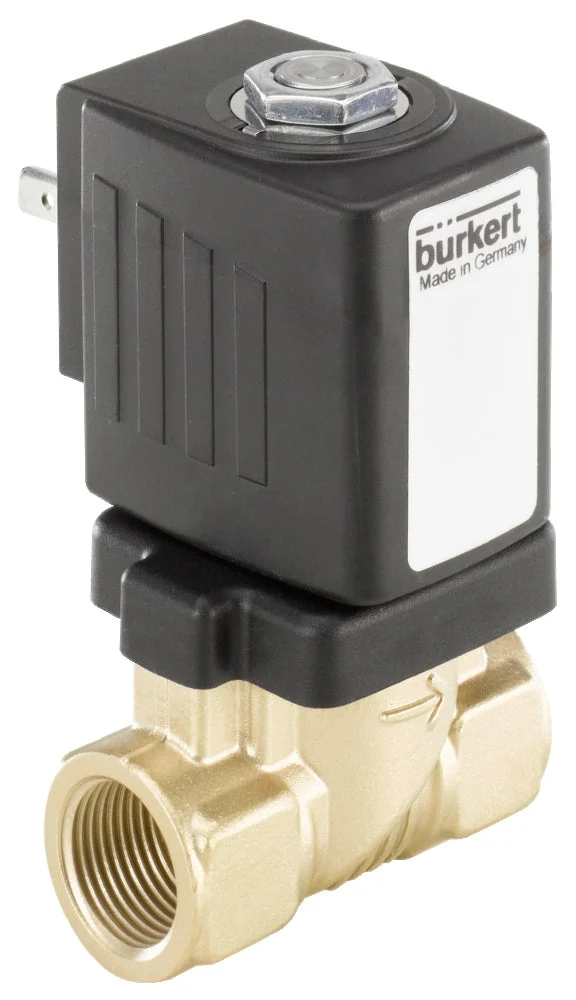

Bürkert semi-direct operating 2/2-way solenoid valve with G1/4” inner threads and 24V UC (alternating or direct current) coil. The valve has a brass housing with EPDM sealing and an orifice size of 10 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The EPDM (ethylene propylene diene monomer rubber) sealing is suited for neutral fluids and many chemicals, but it has poor resistance to oils and fats. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve’s design prevents water hammering. Satisfies all European drinking water requirements.
Important advantages
- This valve satisfies all European drinking water requirements
- The risk of water hammer is low, thanks to the dampened closing
- The 6213 valve combines high flow capacity with the ability to operate with low pressure differentials
- Bürkert design: proven reliability & durability
6213 series
The Bürkert 6213 valve is a semi-direct operated valve. The plunger of the solenoid is coupled to the rubber membrane via a spring. The valve opens from zero bar, but only opens fully when a minimal pressure differential is present. Orifices up DN 40 and port sizes up to 2 inch are available. All 6213 valves satisfy protection class IP65 and it’s housing has a damped design for quiet closing. The standard brass housing satisfies all European drinking water requirements. A special version (HP00) which opens the valve without differential pressure is available for gas and vacuum applications. For reduced energy requirement, all coils can be delivered with electronic power reduction.
Please note: this product is made to order and can therefore unfortunately not be returned.
Specifications
Connection size : 1/4 inch
Connection type : Inner thread cylindrical BSPP-G
Function : Normally closed
Voltage : 24 V AC,24 V DC
Material : Brass
Seal material : EPDM
Operation : Semi-direct
Recommended for : Water,Alcohols
Max pressure (bar) : 10
Features : Anti-waterhammer
Approval : Drinking water
Valve bore (mm) : 10
Electrical connection : DIN-A
Nominal power (W) : 10
Valve ports/positions : 2/2 way
Model : Straight
Peak power (W) : 10
Explosion safety : None
