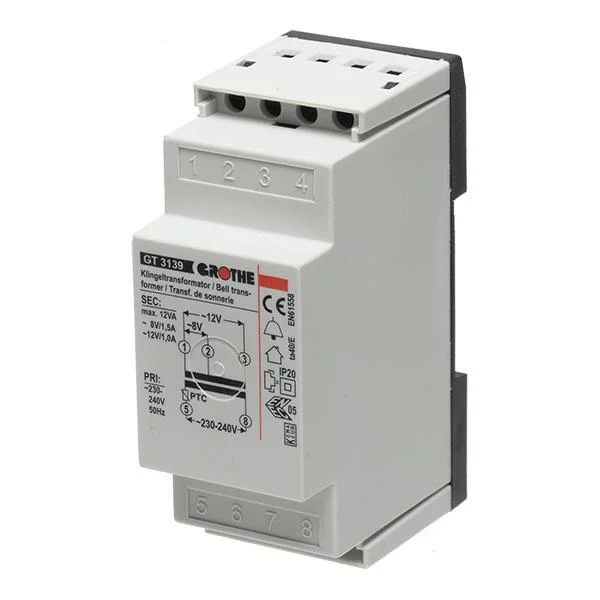

Grothe Bell Transformer – 710039

Grothe bell transformer, (LxWxH) 90x36x55mm, primary voltage 230V, secondary voltage 1 8V, secondary voltage 2 12V, secondary current 1 1.5A, secondary current 2 1A, max output power 12W, max output current 1.5A, transformer type standard bell transformer.

Specifications

Primary voltage (V) : 230
Secondary voltage 1 (V) : 8
Secondary voltage 2 (V) : 12
Secondary voltage 3 (V) : 0
Secondary amperage 1 (A) : 1.5
Secondary amperage 2 (A) : 1
Secondary amperage 3 (A) : 0
Max. output power (W) : 12
Max. output current (A) : 1.5
Max. power loss (W) : 0
Type of transformer : Standard bell ringing transformer
Surface mounting : Yes
Modular version : Yes
Length (mm) : 90
Width (mm) : 36
Height (mm) : 55
Width in number of modular spacings : 2
Short-circuit protected : Yes
Temperature protection : No
