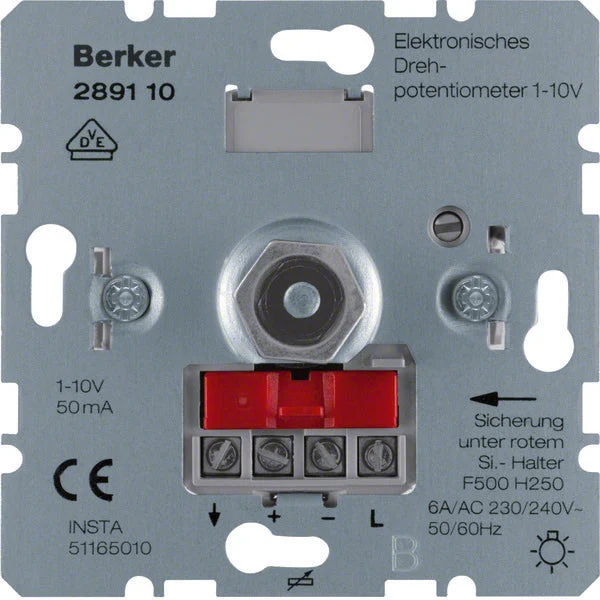

This potentiometer from Hager Berker is suitable for switching and brightness adjustment for lamps with devices with 1-10V interface. The rotary potentiometer is short-circuit proof and overload protected (miniature fuse). In addition, this rotary potentiometer features soft-click and spare fuse. The basic brightness is adjustable. With screw terminals. This Hager Berker basic element can be combined with a dimmer switch from the S.1, B.3, B.7, Q.1, Q.3, K.1, K.5, R.1, R.3 and Arsys series.
Specifications
Mounting method : Flush mounted (plaster)
Control current (mA) : 50
Rated current (A) : 6
Nominal voltage (V) : 230
Frequency (Hz) : 50 Hz to 60 Hz
Dimming 1-10 V : Yes
Dimming DALI : No
Dimming DSI : No
Dimming Touch and Dim : No
Dimming with push-button : No
Dimming manufacturer’s proprietary system : No
Method of operation : Turn/push button
Substation input : Yes
Light value memory : No
Applicable with button : No
Applicable with movement sensor : No
Applicable with presence indicator : No
Applicable with time switch/timer : No
Applicable with transmission button : Yes
Min. depth of built-in installation box (mm) : 40
Applicable with infrared button : No
Width of device (mm) : 71
Height of device (mm) : 71
Depth of device (mm) : 50
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
Transparent : No
IFTTT support available : No
