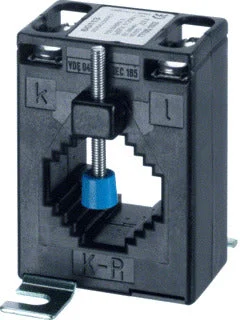

Hager Current Transformer 250/5A | SRA02505

Hager current measuring transformer. Primary measuring current in 250A. Secondary rated current 5A. Secondary (measuring), apparent power 2.5VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 20mm. Width opening 29.5mm. Opening diameter 20mm. Overcurrent limiting factor FS 5.

Specifications

Primary rated current (A) : 250
Secondary rated apparent power (VA) : 2.5
Secondary rated current (A) : 5
Secondary connection : Screw connection
Over current limiting factor : FS 5
Accuracy class : 1
Calibrated : No
Number of primary inputs : 1
Height opening (mm) : 20 mm to 20 mm
Model : Attachable current transformer
Width opening (mm) : 29.5 mm to 29.5 mm
With shock protection : Yes
Opening diameter (mm) : 20
Snap mounting : No
With copper rail : No
