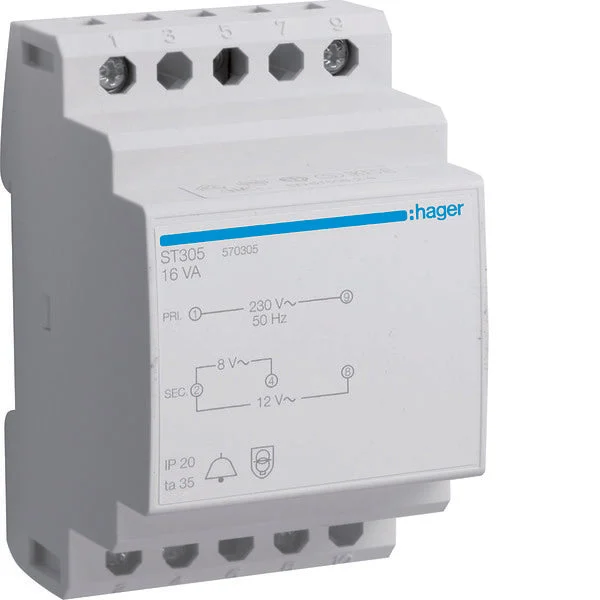

Hager ST Bell Transformer – ST305

A doorbell transformer ensures the proper operation of the doorbell. Because a doorbell operates on low-voltage electricity, it cannot be connected to 230V. This Hager ST bell transformer converts the power supply to the correct number of volts. The Hager ST bell transformer is short-circuit proof.

Specifications

Primary voltage (V) : 230
Secondary voltage 1 (V) : 8
Secondary voltage 2 (V) : 12
Secondary amperage 1 (A) : 2
Secondary amperage 2 (A) : 1.33
Max. output power (W) : 16
Max. output current (A) : 2
Max. power loss (W) : 1.8
Type of transformer : Standard bell ringing transformer
Surface mounting : Yes
Flush-mounted installation : No
Modular version : Yes
Length (mm) : 111
Width (mm) : 54
Height (mm) : 65
Width in number of modular spacings : 3
Short-circuit protected : Yes
Temperature protection : Yes
With on/off switch : No
