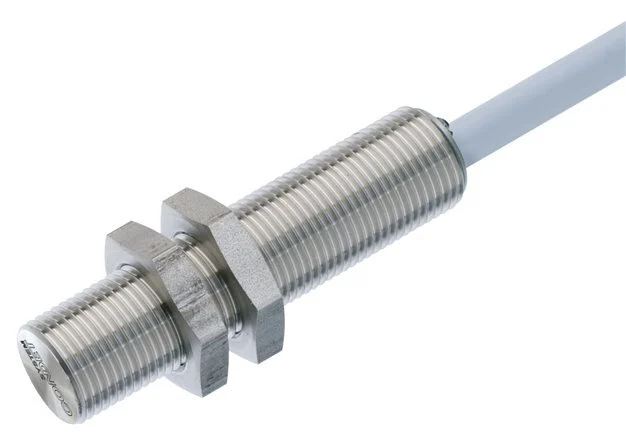

This inductive proximity sensor is used to detect metal targets using electromagnetic energy and without contact. It is made of stainless steel. The maximum switching distance is 10 mm. This sensor features a 2 m cable for power wiring. The sensor requires 10 to 30 V DC and the control output is 200 mA (PNP). The proximity sensor has diameter of M18x1 and a flush installable design with normally open contact. An LED is available for troubleshooting and operation status indication. This sensor is IO link capable. It has good chemical resistance and pressure resistant is up to 60 bar / 80 bar.
Specifications
Signal output : PNP
Thread : M18 x 1
Electrical connection : Cable
Supply voltage (V) : 10 V to 30 V
Material : Stainless steel
Max switching distance (mm) : 10
Sensor feature : Flush installable, NO contact
Rated control supply voltage Us at DC (V) : 10 V to 30 V
Max. current (mA) : 200
Color : Orange
Degree of protection (IP) : IP68 & IP69K
Voltage-type : DC
Length of sensor (mm) : 50
Temperature (°C) : -25 °C to 85 °C
