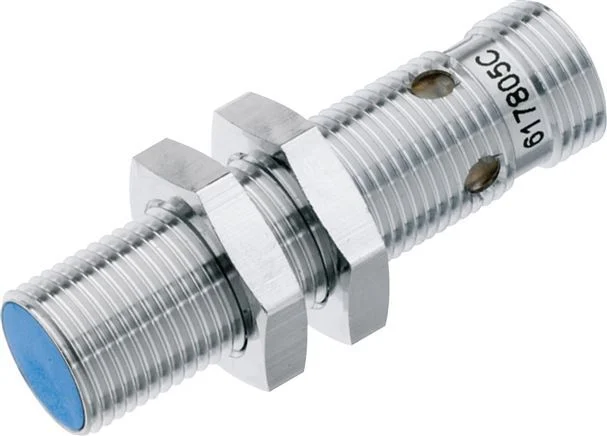

This inductive proximity sensor is used to detect metal targets using electromagnetic energy and without contact. It is made of nickel-plated brass. The maximum switching distance is 10 mm. This sensor features an M12 connector (4-pin) for power wiring. The sensor requires 10 to 30 V DC and the control output is 200 mA (PNP). The proximity sensor has diameter of M30x1.5 and a flush installable design with normally open contact. An LED is available for troubleshooting and operation status indication. This sensor is IO link capable.
Specifications
Signal output : PNP
Thread : M30 x 1.5
Electrical connection : Connector M12
Supply voltage (V) : 10 V to 30 V
Material : Brass
Max switching distance (mm) : 10
Sensor feature : Flush installable, NO contact
Rated control supply voltage Us at DC (V) : 10 V to 30 V
Max. current (mA) : 200
Color : Orange
Degree of protection (IP) : IP67
Compression-resistant : No
Voltage-type : DC
Length of sensor (mm) : 48.5
Temperature (°C) : -25 °C to 70 °C
